Advanced Open Channel Flow Experimentation

The trainer enables accurate demonstration of uniform and non-uniform flow conditions inside an open channel system. Students can investigate flow behavior under varying slopes, depths, and discharge rates, helping them understand complex hydraulic principles through real experiments.

Large Experimental Section

The system includes a 2.5-meter-long experimental section with a cross-sectional size of 85 × 300 mm (W × H), providing sufficient space for multiple experiments and accessory integration.

High-Visibility Tempered Glass Construction

The experimental channel features tempered glass side walls, allowing clear observation of water flow patterns, hydraulic jumps, turbulence formation, wave propagation, and sediment movement.

Closed Water Circuit System

The unit operates using a closed-loop water circulation system, ensuring continuous operation with efficient water usage and easy laboratory integration.

Low-Turbulence Flow Entry

A specially designed flow-optimized inlet section ensures smooth and low-turbulence water entry into the flume. This improves experimental accuracy and allows students to observe stable hydraulic conditions.

Adjustable Inclination Mechanism

The inclination of the flume can be precisely adjusted, enabling simulation of channel slopes and generation of controlled flow conditions. This feature is highly valuable for demonstrating real-world hydraulic engineering applications.

Corrosion-Resistant Design

All components that come into contact with water are manufactured using corrosion-resistant materials, including:

• Stainless Steel
• Glass-Reinforced Plastic
• Tempered Glass

This ensures long service life, minimal maintenance, and reliable operation in laboratory environments.

Educational & Experimental Capabilities

The FM-1849-33 supports a comprehensive range of fluid mechanics and hydraulic engineering experiments, including:

Open Channel Flow Experiments

• Uniform flow analysis
• Non-uniform flow analysis
• Flow transition studies
• Critical and subcritical flow observation
• Hydraulic jump demonstration

Energy Dissipation Studies

• Hydraulic jump energy dissipation
• Stilling basin analysis
• Momentum and energy equation verification

Hydraulic Structure Investigations

• Flow over sharp-crested weirs
• Broad-crested weir experiments
• Ogee-crested weir analysis
• Discharge under sluice gates
• Flow and level control applications

Flow Measurement Techniques

• Flow-measuring flume experiments
• Water level and discharge relationship analysis
• Velocity profile measurement

Sediment & Wave Studies

• Sediment transport behavior
• Transient flow and wave formation
• Vibrating pile investigations
• Obstacle-induced local loss studies

Technical Specifications

Product Specifications

• Model: FM-1849-33

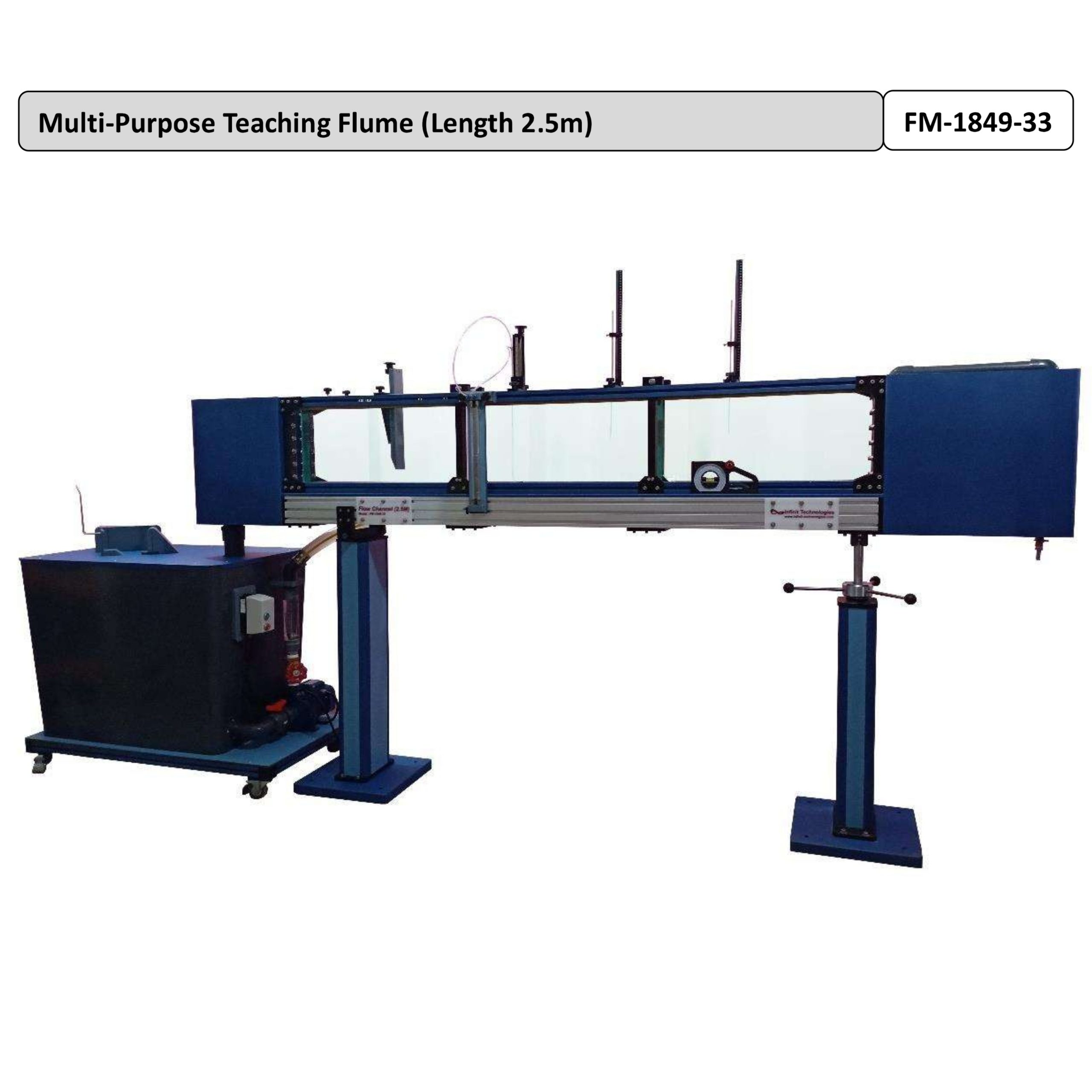

• Product Type: Multi-Purpose Teaching Flume
• Application: Fluid Mechanics & Hydraulic Engineering Training
• Experimental Section Length: 2.5 m
• Channel Cross Section: 85 × 300 mm (W × H)
• Water Circuit: Closed-loop circulation system
• Channel Material: Tempered Glass
• Structural Materials:
  • Stainless Steel
  • Glass-Reinforced Plastic
  • Corrosion-Resistant Components

System Features

• Adjustable channel inclination
• Low-turbulence inlet section
• Transparent observation channel
• Modular experimental accessories
• Easy model installation
• Stable hydraulic performance

Advantages for Educational Institutions

The FM-1849-33 provides engineering students with practical exposure to real hydraulic phenomena that are difficult to understand through theoretical lectures alone. The trainer enhances laboratory learning by combining visualization, measurement, and analytical experimentation in a single integrated platform.

Benefits Include

• Improved conceptual understanding
• Hands-on hydraulic experimentation
• Research-oriented laboratory capability
• Industrial-standard engineering education
• Enhanced student engagement
• Safe and reliable laboratory operation
