Changes of States of Gases TH-3103
Features
Advanced Thermodynamics Training System
- Designed for experimental investigation of gas laws.
- Provides practical understanding of thermodynamic principles.
- Ideal for laboratory demonstrations and student experiments.
Dual Experimental Vessels
- Two transparent measuring vessels for clear observation.
- Enables comparison of different thermodynamic processes.
- Allows visualization of gas state changes in real time.
Isothermal Process Investigation
- Studies Boyle-Mariotte Law under nearly constant temperature conditions.
- Volume variation achieved through hydraulic oil displacement.
- Pressure-volume relationships can be analyzed experimentally.
Isochoric Process Investigation
- Demonstrates Gay-Lussac’s Law at constant volume.
- Electric heater increases gas temperature in a controlled manner.
- Pressure response to temperature change can be observed and measured.
Integrated Pump System
- Built-in pump generates necessary pressure differences.
- Hydraulic oil system enables precise volume adjustment.
- Pump can also operate as a vacuum pump.
Precise Measurement Technology
- Electronic temperature measurement.
- Pressure measurement using integrated pressure gauges.
- Reliable data collection for laboratory analysis.
User-Friendly Design
- Robust laboratory construction.
- Transparent vessels improve learning effectiveness.
- Easy operation for students and instructors.
Working Principle
The TH-3103 consists of two separate measuring vessels that allow investigation of different gas state transformations.
Vessel 1 – Isothermal Process
In the first vessel, the enclosed air volume is compressed or expanded using hydraulic oil and a built-in pump. When the process occurs slowly, heat exchange with the surroundings maintains an approximately constant temperature. This setup allows students to study the relationship between pressure and volume according to Boyle-Mariotte Law.
Vessel 2 – Isochoric Process
In the second vessel, the gas volume remains constant while an electric heater increases the gas temperature. The resulting pressure increase is measured and analyzed. This arrangement demonstrates Gay-Lussac’s Law and the relationship between pressure and temperature at constant volume.
Experiments Included
1. Demonstration of Gas State Changes
- Study the behavior of gases under varying thermodynamic conditions.
- Observe pressure, temperature, and volume interactions.
- Understand the practical application of gas laws.
2. Isothermal Change of State (Boyle-Mariotte Law)
- Investigate pressure-volume relationships.
- Analyze gas compression and expansion.
- Verify Boyle’s Law experimentally.
- Observe nearly constant temperature processes.
3. Isochoric Change of State (Gay-Lussac’s Law)
- Study pressure-temperature relationships at constant volume.
- Measure pressure variation caused by heating.
- Verify Gay-Lussac’s Law experimentally.
- Understand constant-volume thermodynamic processes.
Technical Specifications
Pump
- Power Output: 60 W
- Delivery Pressure: 2 bar
- Intake Pressure: 213 mbar
Temperature Measuring Range
- Vessel 1: -100°C to 400°C
- Vessel 2: -100°C to 400°C
Pressure Measuring Range
- Vessel 1: 0 – 4 bar
- Vessel 2: 0 – 4 bar
Volume Measuring Range
- Vessel 1: 0 – 3 Liters (Approx.)
Changes of States of Gases TH-3103
Product Overview

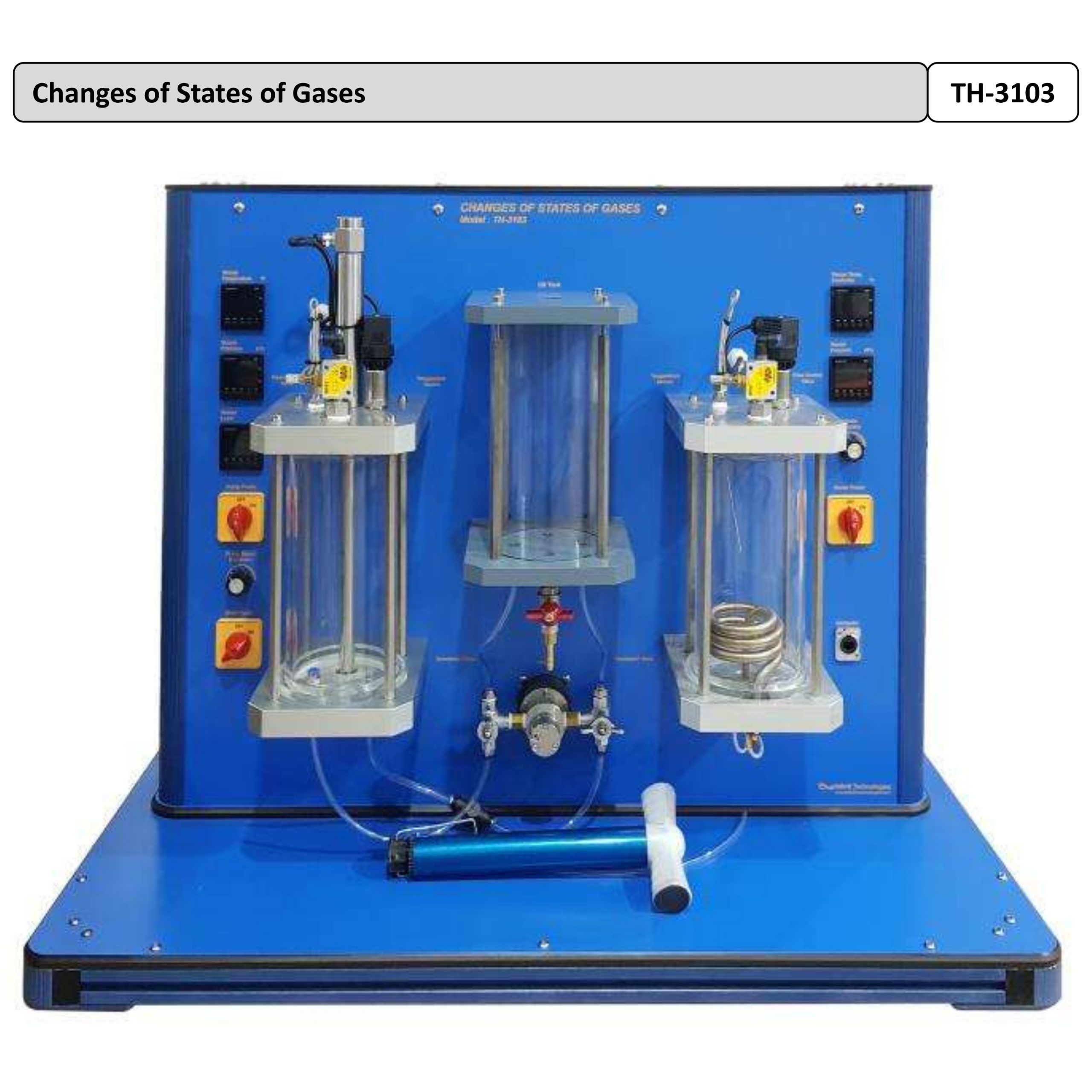

The Changes of States of Gases (TH-3103) is a comprehensive thermodynamics training system designed to provide students with a practical understanding of gas laws and state changes. This advanced educational bench enables the experimental investigation of two fundamental thermodynamic processes: Isothermal Change of State (Boyle-Mariotte Law) and Isochoric Change of State (Gay-Lussac’s Law).
The equipment is specifically developed for engineering universities, technical institutes, vocational training centers, and research laboratories to help learners visualize and analyze the relationship between pressure, temperature, and volume in gases. By using transparent measuring vessels and modern electronic measurement systems, students can directly observe gas behavior under different thermodynamic conditions.
The TH-3103 utilizes air as the test gas and features two separate experimental vessels, allowing users to study different gas state transformations with high accuracy. The apparatus combines theoretical knowledge with hands-on experimentation, making it an essential laboratory system for thermodynamics and heat transfer education.
Educational Benefits
- Strengthens understanding of thermodynamic principles.
- Provides practical verification of fundamental gas laws.
- Enhances laboratory and research skills.
- Supports engineering and technical education programs.
- Ideal for Mechanical Engineering, Power Engineering, Mechatronics, Industrial Engineering, and Applied Physics laboratories.
The Changes of States of Gases (TH-3103) is an essential thermodynamics laboratory system that transforms theoretical gas law concepts into practical, measurable experiments, giving students a deeper understanding of pressure, temperature, and volume relationships in real engineering applications.
