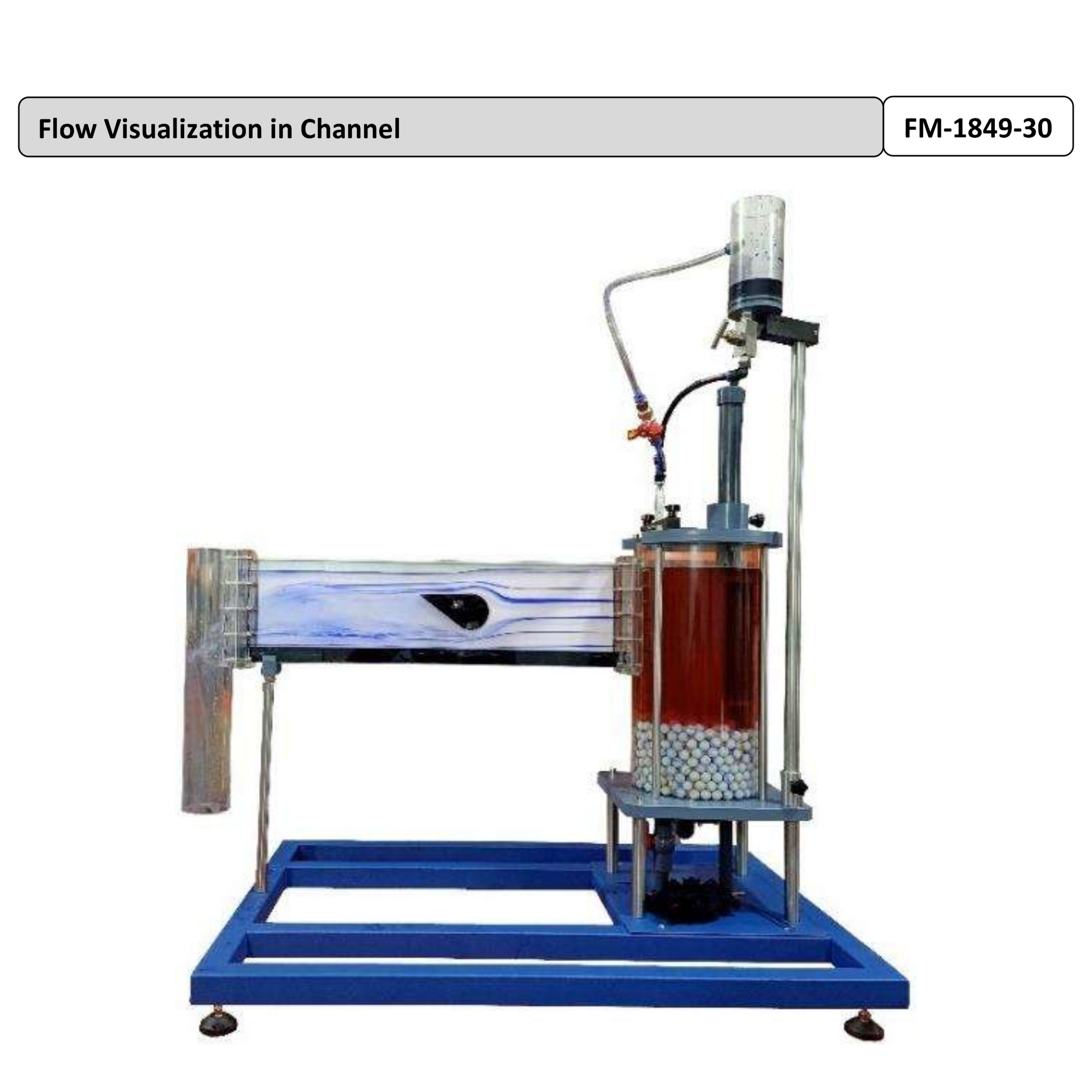

Flow Visualization in Channel FM-1849-30
Main Features
Streamline Visualization
The trainer enables clear visualization of streamlines during incident flow and flow around various drag bodies and weirs using injected contrast ink.
Transparent Experimental Flume
The fully transparent channel allows students to observe:
- Flow patterns
- Streamline formation
- Turbulence behavior
- Vortex generation
- Water movement around obstacles
Multiple Experimental Configurations
The apparatus includes:
- Two different weirs
- Four different drag bodies
- Multiple nozzle injection system
This allows a wide range of fluid mechanics experiments.
Adjustable Water Control
Water levels inside the flume can be adjusted at:
- Water inlet
- Experimental channel
- Water outlet
This improves flexibility and experimental accuracy.
Stable Water Flow
A built-in flow straightener provides:
- Even water distribution
- Non-vortical flow
- Stable experimental conditions
Flexible Water Supply
The equipment can operate using:
- Hydraulic Bench
- Laboratory water supply system
Educational Applications
The FM-1849-30 trainer is ideal for:
- Fluid Mechanics Laboratory
- Hydraulic Engineering Laboratory
- Mechanical Engineering Education
- Civil Engineering Training
- Research and Demonstration Purposes
- Technical and Vocational Training Institutes
Experiments Included
Students can perform several important experiments including:
- Visualization of streamlines around various drag bodies
- Flow visualization around weirs
- Study of incident flow behavior
- Observation of vortex formation
- Effect of differently shaped weirs on flow
- Flow interaction with streamlined bodies
- Analysis of drag and flow distribution
Technical Specifications
Experimental Flume
- Dimensions (L × W × H): 600 × 3 × 165 mm
- Transparent construction material
Contrast Medium System
- Contrast medium: Ink
- Injection system with 5 nozzles
Tank Capacities
- Water tank capacity: 10 Liters
- Ink tank capacity: 570 mL
Drag Bodies Included
- Streamlined body
- Guide vane profile
- Multiple drag body configurations
Scope of Delivery
The system is supplied with:
- 1 Experimental Module
- Assorted Drag Bodies
- Instruction Manual
Advantages of the System
- Provides practical understanding of fluid flow principles
- Enhances student learning through real-time visualization
- Strong and durable laboratory construction
- Compact and user-friendly design
- Excellent for demonstration and research purposes
- Supports modern engineering education requirements
Ideal for Modern Engineering Laboratories
The FM-1849-30 Flow Visualization in Channel trainer is an essential solution for institutions seeking advanced educational equipment for fluid mechanics studies. Its transparent design, visualization capabilities, and versatile experimental functions make it a valuable addition to any engineering laboratory environment.
Flow Visualization in Channel – FM-1849-30
The Flow Visualization in Channel (FM-1849-30) is a high-quality educational and experimental fluid mechanics training apparatus designed to demonstrate and visualize flow behavior in open channels. This advanced laboratory equipment enables students, researchers, and engineering professionals to observe streamline formation, drag effects, vortices, and water flow phenomena in a transparent experimental flume.
The system is specially developed for Fluid Mechanics laboratories, helping learners understand the principles of hydrodynamics, streamline flow, incident flow, and drag body interaction through real-time experimentation and visualization.
Product Highlights
- Advanced fluid mechanics experimental trainer
- Designed for flow visualization in open channels
- Transparent experimental flume for clear observation
- Demonstrates streamline and vortex formation
- Includes multiple drag bodies and weirs
- Adjustable water level for accurate experimentation
- High educational value for engineering laboratories
- Suitable for universities, polytechnics, and technical institutes
- Easy installation and operation
- Can operate using a hydraulic bench or laboratory water supply
Product Description
The FM-1849-30 Flow Visualization in Channel apparatus is an advanced experimental setup used to study water flow and streamline patterns around drag bodies and weirs in open channels. The unit allows users to observe fluid flow phenomena directly by injecting a contrast medium into the water stream.
The equipment features a transparent experimental flume that provides excellent visibility of streamlines and vortex formations. By using specially designed drag bodies and weirs, students can investigate how different shapes and obstacles influence the characteristics of fluid flow.
The apparatus includes a stabilizing flow system that ensures smooth, non-vortical water entry into the channel, enabling accurate and repeatable experimental results. Water levels within the flume can be adjusted at both the inlet and outlet, providing flexibility for different experimental conditions.
The unit is designed for practical learning and research applications in fluid mechanics and hydraulic engineering laboratories. It offers hands-on understanding of flow behavior and supports theoretical concepts taught in engineering courses.
