Solar Energy Trainer With Connection To Mains IRE-252
Technical Information
| Sr. No. | List of Modules | Model | Qty |
|---|---|---|---|
| 1 | Dual Solar Panel Module | IRE-2501 | 1 |
| 2 | Lamp Load Module 2 | IRE-2523 | 1 |
| 3 | Power Rheostat | IRE-2525 | 1 |
| 4 | Three Phase Earth Leakage Breaker Module | IRE-2526 | 1 |
| 5 | Solar Irradiance Measurement Module | IRE-2518 | 1 |
| 6 | Grid ON Inverter Module (Grid tied) | IRE-2510 | 1 |
| 7 | Electric Energy Measurement Module | IRE-2519 | 1 |
| 8 | Artificial Light Source Module | IRE-2505 | 1 |
| 9 | Artificial Light Control Module | IRE-2506 | 1 |
| 10 | Network Distributor Module | IRE-2527 | 1 |
| 11 | Set of Leads | IRE-ACC | 1 |
| 12 | Frame | IRE-2L | 1 |
Experiments Included
- Measuring the mains voltage
- Measuring the load current, voltage, power and energy
- Setting the solar panel to the most irradiated position
- Changing the inclination of the solar panel
- Changing the azimuth of the solar panel
- Covering the solar panel with different materials
- Obtaining the solar irradiation data
- Obtaining the solar panel voltage irradiation curve
- Calculating the inner resistance of the solar panel
- Obtaining the solar panel current-voltage curve
- Measuring the electricity delivered to the mains grid
- Measuring the electricity produced by the solar panel and delivered/taken from the mains grid
- Measuring the electricity produced by the solar panel, delivered/taken from the mains grid, and the loading of lamps
Solar Energy Trainer with Connection to Mains
Product Overview

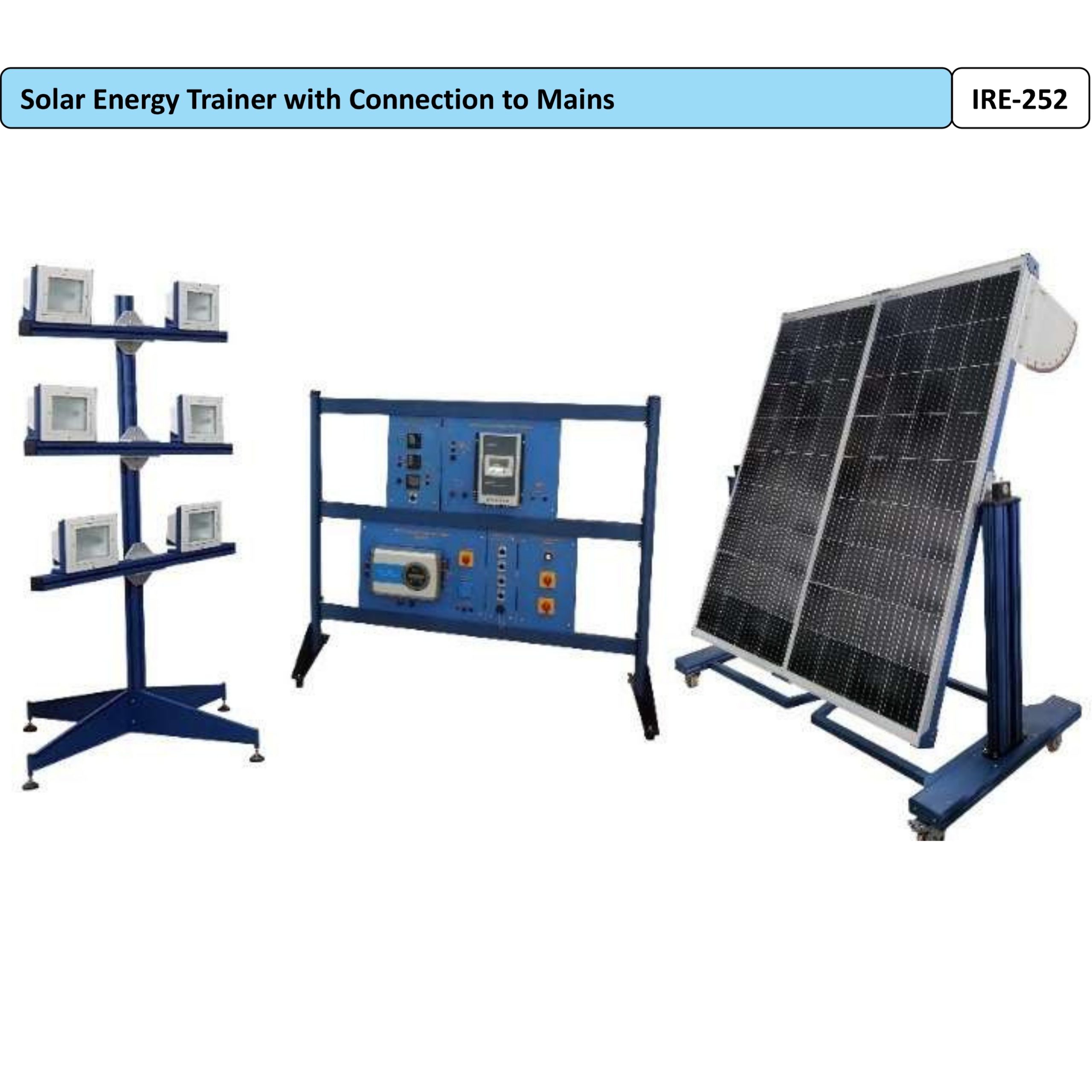

A solar energy trainer with a connection to the mains typically refers to an educational or training system designed to teach individuals about solar energy technology, its applications, and how it can be integrated into the existing electrical grid. These systems are often used in technical schools, vocational training centers, and educational institutions to provide hands-on experience and knowledge about solar power.
Features
- Enables measurement and analysis of solar panel performance under various conditions
- Allows integration and study of solar energy delivery to the mains grid
- Provides hands-on experience with solar panel positioning (inclination and azimuth)
- Supports study of solar irradiance and its effect on panel output
- Optional dedicated software for data acquisition and calculation
Educational Objectives / Learning Outcomes
Not explicitly stated in the PDF beyond the general purpose described in the Product Overview: to teach individuals about solar energy technology, its applications, and how it can be integrated into the existing electrical grid, providing hands-on experience and knowledge about solar power.
Standard Accessories
- Dual Solar Panel Module (IRE-2501) – Qty: 1
- Lamp Load Module 2 (IRE-2523) – Qty: 1
- Power Rheostat (IRE-2525) – Qty: 1
- Three Phase Earth Leakage Breaker Module (IRE-2526) – Qty: 1
- Solar Irradiance Measurement Module (IRE-2518) – Qty: 1
- Grid ON Inverter Module (Grid tied) (IRE-2510) – Qty: 1
- Electric Energy Measurement Module (IRE-2519) – Qty: 1
- Artificial Light Source Module (IRE-2505) – Qty: 1
- Artificial Light Control Module (IRE-2506) – Qty: 1
- Network Distributor Module (IRE-2527) – Qty: 1
- Set of Leads (IRE-ACC) – Qty: 1
- Frame (IRE-2L) – Qty: 1
Optional Accessories (If Available)
- Software IRE-252SW: DAQ software specially designed in National Instrument™ LABVIEW™ environment to measure and calculate the results of apparatus. While using software, a set of electronic sensors are included. Software can be run with any Windows™ environment.
Applications
Used in technical schools, vocational training centers, and educational institutions to provide hands-on experience and knowledge about solar power.
Summary
The Solar Energy Trainer with Connection to Mains (IRE-252) is an educational training system designed to teach solar energy technology, its applications, and its integration with the existing electrical grid. Comprising modules such as the Dual Solar Panel Module, Lamp Load Module, Power Rheostat, Three Phase Earth Leakage Breaker Module, Solar Irradiance Measurement Module, Grid ON Inverter Module, Electric Energy Measurement Module, Artificial Light Source and Control Modules, and Network Distributor Module, the trainer enables a comprehensive range of experiments covering solar panel positioning, irradiance measurement, current-voltage characteristics, and grid-tied electricity measurement. With the optional IRE-252SW LABVIEW™-based DAQ software, the system further supports accurate measurement and calculation of results, making it a valuable tool for hands-on solar energy education in technical schools, vocational training centers, and educational institutions.
