Outdoor Solar Energy Training System IRE-251
Technical Information
| Parameter | Description |
|---|---|
| Moveable Solar Module Frame | Included |
| Temperature Sensor Installed | Included |
| Temperature Indicator Installed | Included |
| DC Voltmeter | Installed |
| DC Current Meter | Installed |
| Power Inverter | Included |
| Power Meter | Included |
| Two-way Energy Meter | Optional |
Standard Modules
| Module | Model |
| Dual Solar Panel Module | IRE-2501 |
| Inverter Module (Off Grid) Module | IRE-2508 |
| Measuring Module | IRE-2515 |
| MPPT Charge Controller Module | IRE-2509 |
| Battery* | 12V (24V on demand) – IRE-BAT |
| Set of Leads | IRE-ACC |
| Frame | IRE-FL |
Note:
Battery is not included due to export policy and must be arranged by the end user.
Experiments Included
- Behavior of Solar Module on Different Effects
- Illuminance
- Temperature with Light Source
- Shading
- Parameter Testing of Solar Module
- Short Circuit Current
- Open Circuit Voltage
- Maximum Output Voltage
- Maximum Output Current
- Relationship of Inclination Angle of Solar Module
- Output Voltage and Current
- Calculating Efficiency of Solar Module
- Function of Charge Controller
- Function of Inverter in Grid Tied Solar System

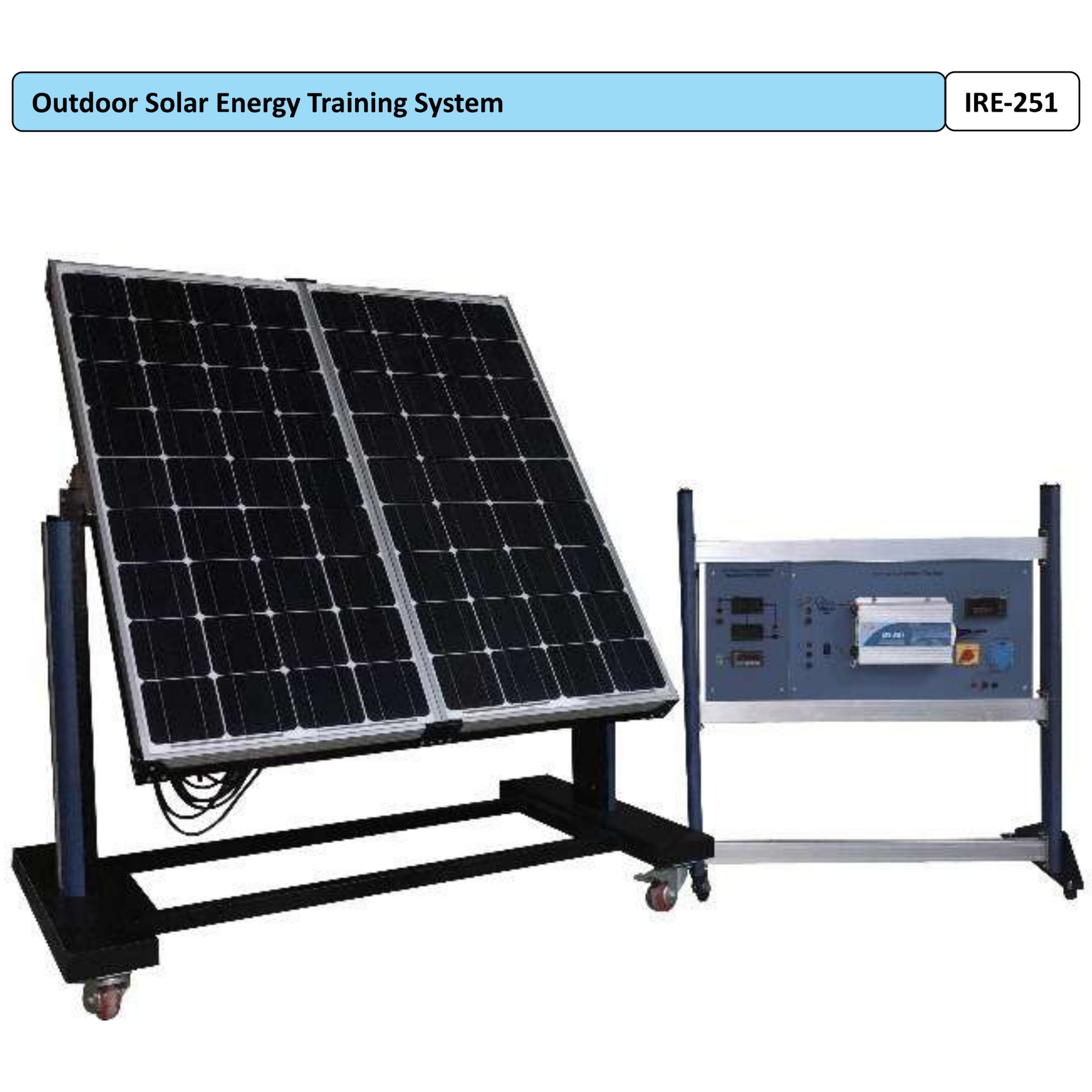

Outdoor Solar Energy Training System (IRE-251)
The Outdoor Solar Energy Training System (IRE-251) is a solar power experimental platform designed to demonstrate the use of solar energy for power generation. The trainer demonstrates the power transformation from Solar PV modules to Battery, and from Battery to Loads.
Features
- Moveable Solar Module Frame
- Temperature Sensor Installed
- DC Voltmeter Installed
- DC Current Meter Installed
- Temperature Indicator Installed
- Power Inverter
- Power Meter
- Two-way Energy Meter (optional)
Educational Objectives / Learning Outcomes
- Demonstrate the use of Solar Energy for power generation.
- Demonstrate the power transformation from Solar PV modules to Battery.
- Demonstrate the power transformation from Battery to Loads.
Standard Accessories
- Dual Solar Panel Module (IRE-2501)
- Inverter Module (Off Grid) Module (IRE-2508)
- Measuring Module (IRE-2515)
- MPPT Charge Controller Module (IRE-2509)
- Battery* – 12V (24V on demand) (IRE-BAT)
- Set of Leads (IRE-ACC)
- Frame (IRE-FL)
Software
DAQ software specially designed in National Instrument™ LABVIEW™ environment to measure and calculate the results of the apparatus. While using the software, a set of electronic sensors are included. The software can be run with any Windows™ environment.
Optional Accessories
- Electric Energy Meter Module (IRE-2518)
- Two-way Energy Meter
Applications
- Solar energy power generation training.
- Power transformation from Solar PV modules to Battery.
- Power transformation from Battery to Loads.
Summary
The Outdoor Solar Energy Training System (IRE-251) is a practical solar power experimental platform for studying solar energy generation and power conversion. It enables learners to perform experiments related to solar module performance, electrical characteristics, efficiency, charge controller operation, and inverter functions while using dedicated DAQ software for measurement and result analysis.
