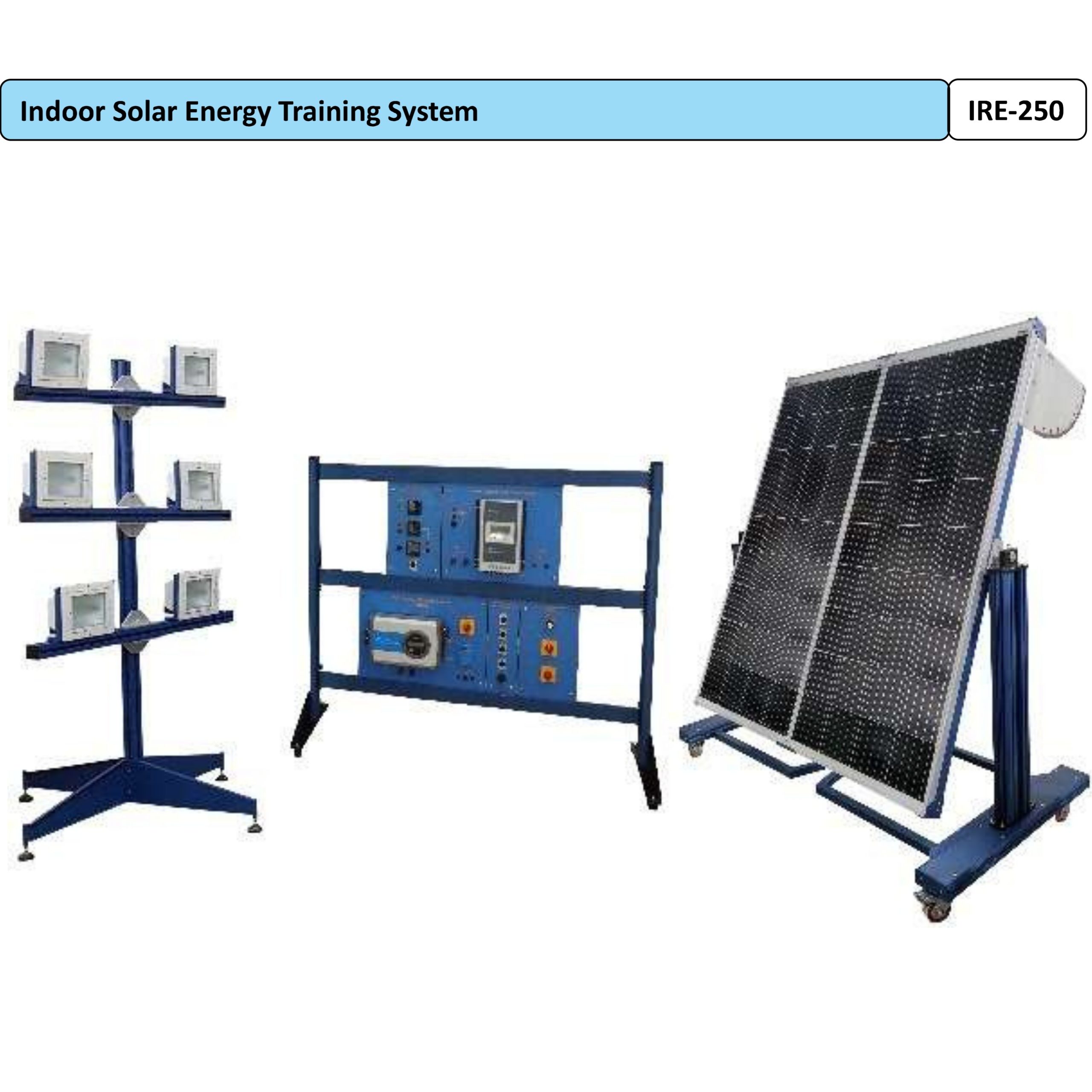

Indoor Solar Energy Training System IRE-250
Technical Information
| Parameter | Description |
|---|---|
| Product Name | Indoor Solar Energy Training System |
| Model | IRE-250 |
| Solar Module Frame | Moveable Solar Module Frame |
| Light | Installed |
| Light Intensity Control | Installed |
| Temperature Sensor | Installed |
| Solar Charge Controller | PWM Solar Charge Controller |
| Power Inverter | Installed |
| Power Meter | Installed |
Experiments Included
- Behavior of Solar Module on Different Effects
- Illuminance
- Temperature
- Shading
- Parameter Testing of Solar Module with Light Source
- Short Circuit Current
- Open Circuit Voltage
- Maximum Output Voltage
- Maximum Output Current
- Function of Charge Controller
- Relationship of Inclination Angle of Solar Module with Light Source and Output Voltage and Current
- Calculating Efficiency of Solar Module
- Function of Inverter in Standalone Solar System
Standard Accessories
| Item | Description |
|---|---|
| 1 | Dual Solar Panel Module |
| 2 | Artificial Light Source Module |
| 3 | Artificial Light Control Module |
| 4 | Charge Controller Module |
| 5 | Inverter Module (Off Grid) Module |
| 6 | Measuring Module |
| 7 | Battery*: 12V (24V on demand) |
| 8 | Frame |
| 9 | Set of Cables |
Note:
Battery is not included due to export policy and must be arranged by the end user.
Optional Accessories (If Available)
- Grid ON Inverter Module (Optional) (Electric Energy Meter Module is required for operation)
- Electric Energy Meter Module (Required if Grid ON Inverter is selected) (Optional)
The Indoor Solar Energy Training System (IRE-250) is designed to demonstrate the use of solar energy for power generation. The trainer demonstrates the power transformation from Solar PV modules to Battery, and from Battery to Loads.
Features
- Demonstrates the use of solar energy for power generation.
- Demonstrates power transformation from Solar PV modules to Battery.
- Demonstrates power transformation from Battery to Loads.
- Moveable Solar Module Frame.
- Light Installed.
- Light Intensity Control Installed.
- Temperature Sensor Installed.
- PWM Solar Charge Controller.
- Power Inverter Installed.
- Power Meter Installed.
Summary
The Indoor Solar Energy Training System (IRE-250) is a renewable energy training system designed to demonstrate solar power generation and power transformation from Solar PV modules to Battery and from Battery to Loads. It includes practical experiments covering solar module behavior, electrical measurements, charge controller operation, inverter operation, and solar module efficiency, making it suitable for renewable energy education and laboratory training.
