Industrial Control Teaching Set Order Code: 290-00
Key topic areas:
- Logic gates: AND, OR, NOT
- Truth tables and step logic
- Latching actuators and counters
- Timers and timed event sequences
- Measuring part width, sorting parts
- Analog control inputs and outputs
- Debugging and troubleshooting PLCs

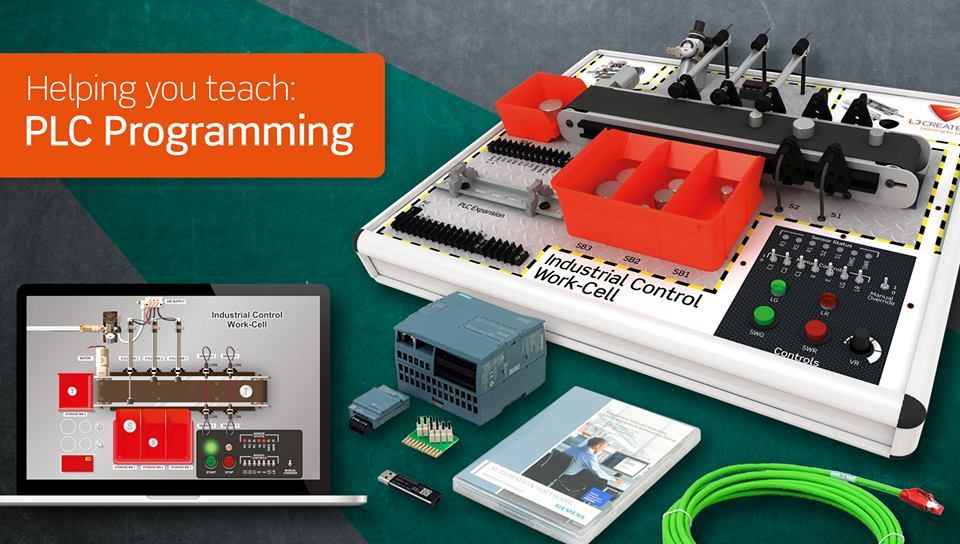

What’s included
- ✓Industrial Control Trainer (hardware)
- ✓Siemens S7-1200 PLC + STEP 7 software
- ✓Simulated PLC ladder logic editor
- ✓Virtual production line simulator

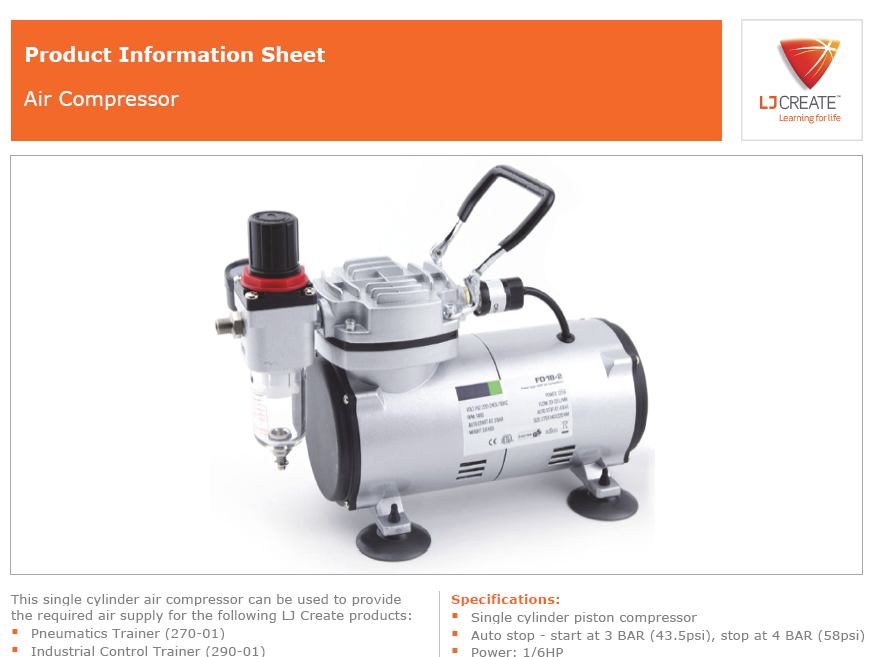

- ✓Manual air compressor + accessory kit

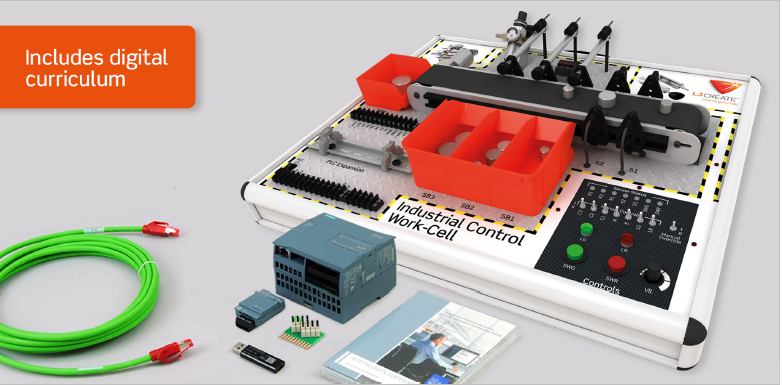

- ✓Instructor’s guide + digital curriculum
Learning pathway
Simulation: Whole class uses virtual PLC editor via USB — no hardware needed

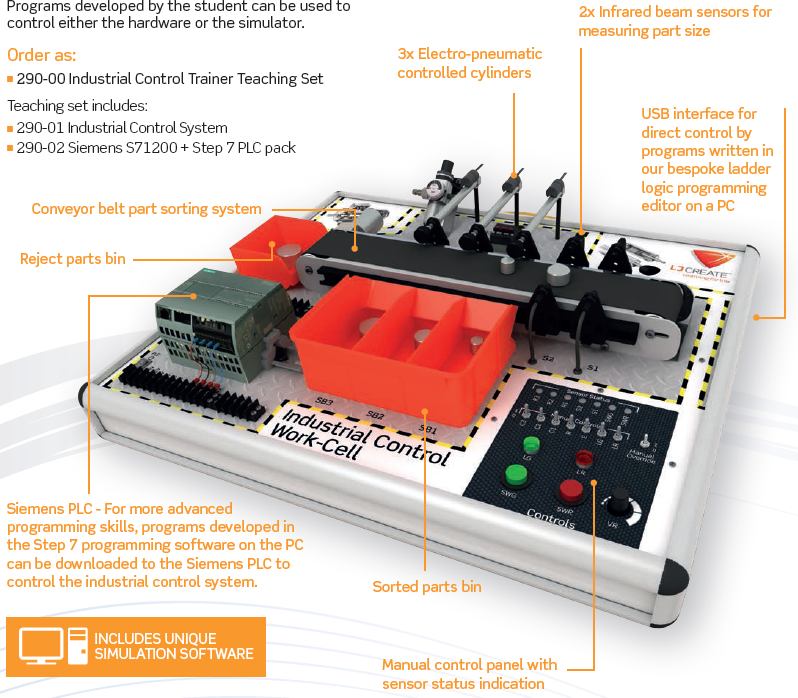

Hardware control: Programs run on physical trainer — conveyor belt, cylinders, sensors
Siemens STEP 7: Advanced tasks using industry-standard PLC and programming suite
Industrial Control Teaching Set
Order Code: 290-00

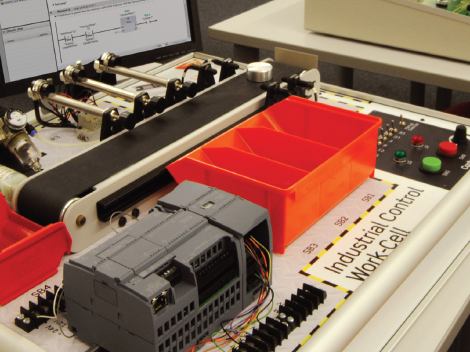

A comprehensive PLC training platform for classroom and lab use. Students learn programmable logic control from the ground up — starting with a built-in software simulator, then progressing to a real Siemens S7-1200 PLC and STEP 7 programming software. The physical trainer features a working conveyor belt and pneumatic sorting system, enabling hands-on problem solving with industrial-grade hardware.
- Supply Voltage: 110–240V AC
- Dimensions: 660 × 600 × 170 mm
- Weight: 21 kg
