3-Phase Control Systems Trainer Order Code: 325-17
What Students Will Learn:
This trainer supports a wide range of learning topics, including:
- Principles of AC motors and synchronous machines
- Single-phase vs. three-phase systems
- Three-phase power generation and distribution
- AC inverter operation
- Delta and Wye (Star) connections
- Power factor correction
- Three-phase rectification and protection systems
- Various AC motor types and applications
Hands-On Learning Activities:
Students can actively engage in practical experiments such as:
- Measuring voltage, current, phase relationships, and power in different circuit configurations
- Analyzing balanced and unbalanced three-phase systems
- Working with 3-wire, 4-wire, and 6-wire connections
- Exploring delta and wye system behaviors
- Understanding inverter principles
- Performing fault diagnosis and troubleshooting in AC circuits
These activities help bridge the gap between theory and real-world electrical systems.
What’s Included:
- 3-Phase Control Systems Trainer Unit
- Connection Lead Set
- Protective Storage Case
- Digital Curriculum and Learning Materials
Additional Equipment Required:
- Digital Multimeter
- Dual Trace Oscilloscope
Technical Specifications:
- Power Supply: 110 – 240V, 50–60Hz
- Dimensions: 360 × 80 × 250 mm (W × H × D)
- Packed Volume: Approx. 0.01 m³
- Weight: Approx. 3.8 kg

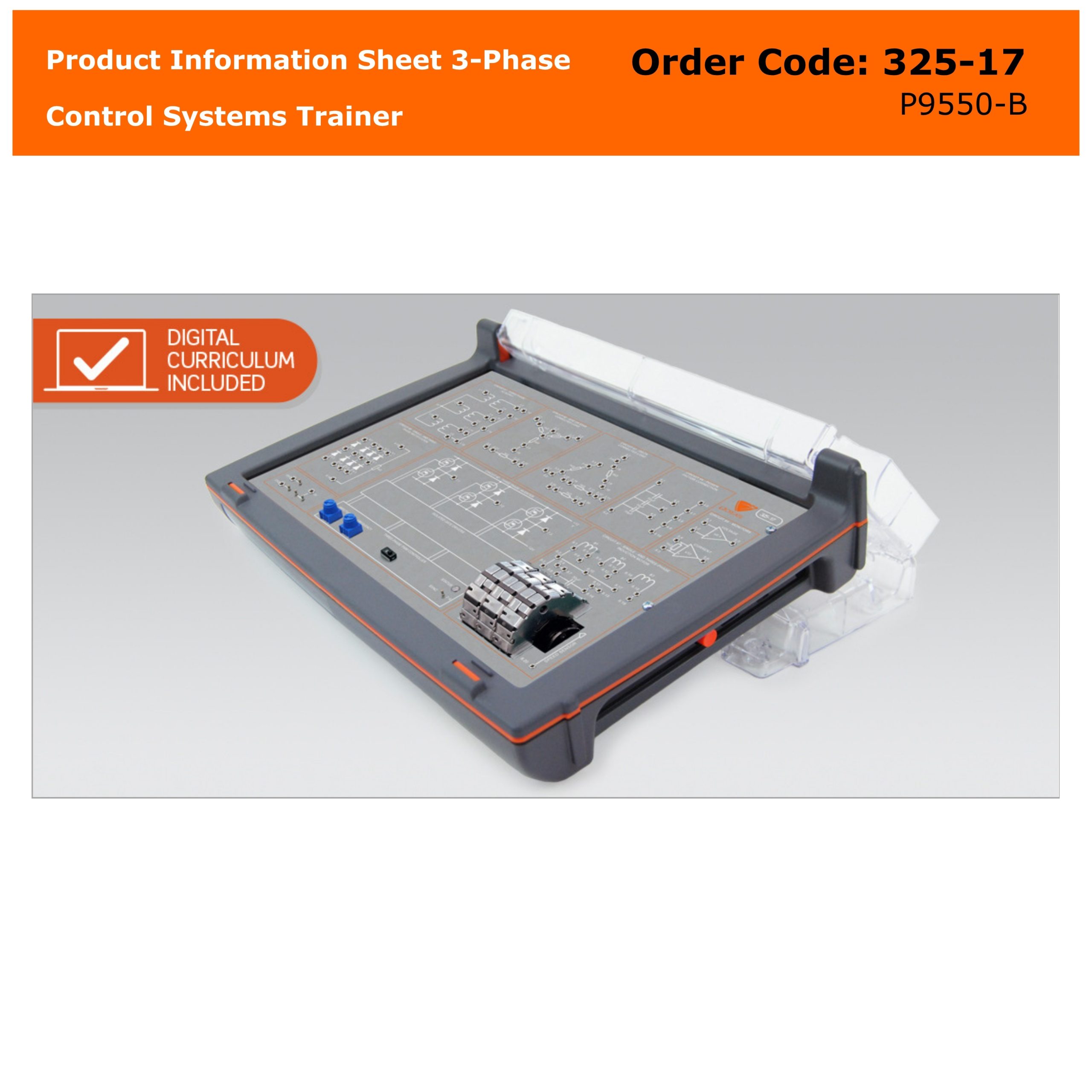

3-Phase Control Systems Trainer (Order Code: 325-17)
The 3-Phase Control Systems Trainer is a compact, durable, and fully self-contained training solution designed to help students understand the fundamentals of three-phase electrical systems and AC motor operation in a safe, hands-on environment.
Built with safety and practicality in mind, the unit allows learners to explore how a three-phase power supply is generated and how it interacts with motors and inverters. All operating voltages are kept at safe levels, making it ideal for classroom and laboratory use.
One of its key advantages is versatility—the integrated motor can be configured for both single-phase and three-phase operation, enabling students to clearly observe and compare performance differences between the two systems.
Why Choose This Trainer?
This system is ideal for technical institutes, universities, and training centers looking to provide practical, industry-relevant education in electrical and power engineering. Its safe design, combined with comprehensive experiments and digital learning support, ensures students gain both confidence and competence in working with three-phase systems.
