Advanced Industrial Control Teaching Set 292-00
Learning Outcomes
- PLC programming and troubleshooting (single & multi-controller systems)
- Industrial automation process control
- HMI configuration and monitoring
- Introduction to SCADA (Supervisory Control and Data Acquisition)
- Fault diagnosis and maintenance techniques
- Sensor integration and condition monitoring
System Overview
The trainer replicates a fully automated production line with:
- Dual conveyor belt system
- Automated part dispensing and sorting
- Pneumatic pick-and-place mechanism
- Gripper arm for part transfer
- Multi-sensor inspection system for quality control
Students can design and implement PLC programs to:
- Transport components across conveyors
- Control pneumatic actuators
- Monitor and analyze sensor data
- Identify and reject defective parts
- Execute full industrial automation sequences
Core Features
- Two conveyor belts with automated control
- Pneumatic pick-and-place plunger with gantry system
- Pneumatically operated gripper arm
- Integrated part dispenser with mixed-spec components
- Advanced sensor system including:
- Pneumatic thickness sensor
- Optical and opto-reflective sensors
- Infrared level detection sensor
- Storage bins for accepted and rejected parts
- Built-in air pressure regulator
- On-board DIN rail for PLC mounting
- Screw terminal connectors for flexible wiring
- Expansion ports for additional sensors and actuators
- Switchable fault simulation for troubleshooting training
Control & Programming Capabilities
Students can perform hands-on programming tasks such as:
- Ladder logic development and execution
- Timer, counter, and latch operations
- Sequential control and shift registers
- Conveyor and actuator control
- Full process automation programming
Included Components

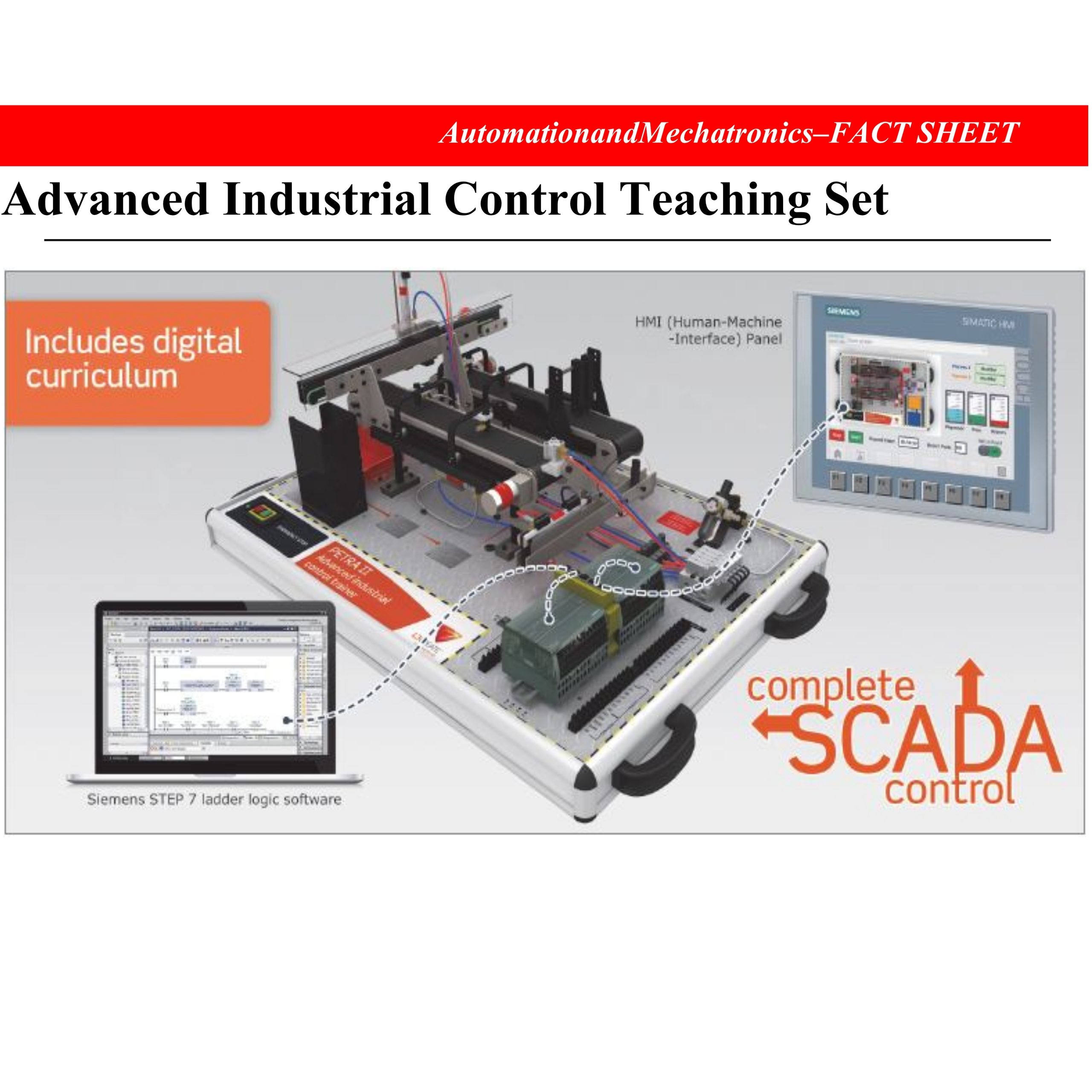

- PETRA II Advanced Industrial Control Trainer
- 24V DC Power Adapter
- PLC Connection Leads
- User Manual
- Siemens HMI Pack, including:
- Siemens Simatic S7-1200 PLC
- STEP 7 Programming Software
- HMI Touch Panel
Technical Specifications
- Trainer Supply Voltage: 24V DC
- Power Adapter Input: 110–240V AC, 50–60Hz
- Dimensions: 930 × 855 × 550 mm (L × W × H)
- Packed Volume: 0.32 m³
- Packed Weight: 30 kg
- Compressed Air Requirement: Max 0.6 MPa (6 bar / 90 psi)
Advanced Industrial Control Teaching Set (292-00)
The Advanced Industrial Control Teaching Set (292-00) is a comprehensive, industry-aligned training solution designed to simulate a real-world factory automation environment. This advanced trainer enables students and engineers to develop practical skills in PLC programming, industrial automation, HMI integration, and SCADA systems.
At the core of the system is a dual-process industrial plant simulation, where two independent processes are controlled by separate PLCs and supervised through an integrated Human Machine Interface (HMI). The system supports industry-standard controllers such as the Siemens Simatic S7-1200, making it highly relevant for modern industrial training.
