CAN Bus Training Solution (Arduino) BL0587
Technical Specifications
| Parameter | Value |
|---|---|
| Training duration | 20 hours |
| Number of CAN nodes | Four (fully programmable) |
| Teacher’s manual | 80 pages |
Experiments Included
The PDF lists the following learning objectives / experiments:
- CAN technology, wiring, topology and networks
- CAN message structure and physical layer transmission
- Understanding CAN bus protocols
- Using buffers in CAN systems
- Using CAN transmit and receive messages
- Errors in CAN systems
- Programming techniques in CAN systems
- Masks and filters in CAN systems
- Higher level protocols
- Development of complete CAN systems based on microcontrollers
Standard Accessories
- Flowcode software, version 8 or later
- E-blocks2 boards
- Instructor Guide
- Student Guide

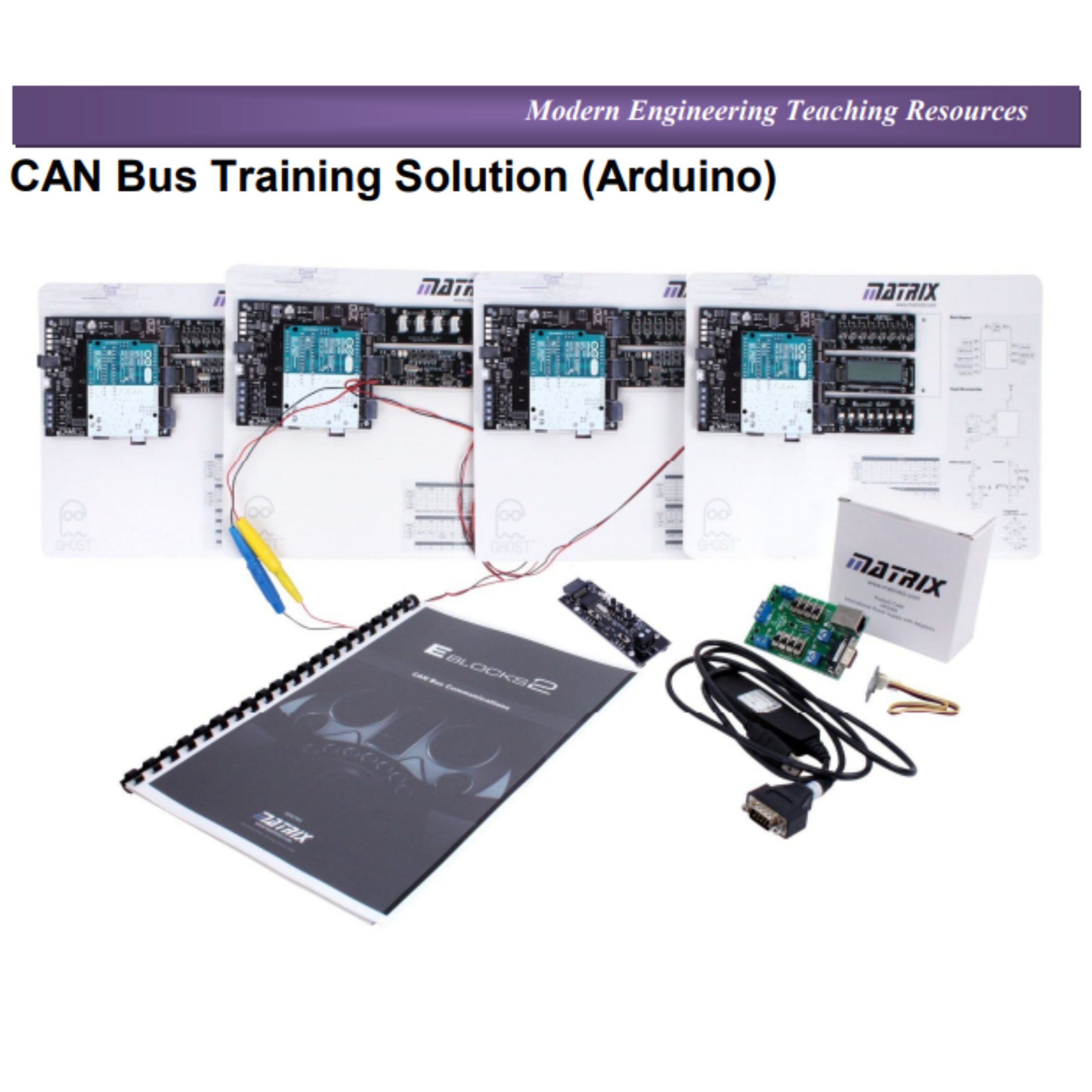

CAN Bus Training Solution (Arduino)
Product Name
CAN Bus Training Solution (Arduino)
Product Code: BL0587
CAN Bus Training Solution is a 20 hour training solution designed to facilitate the development and investigation of systems that use the CAN bus protocol.
Key Features
- 20 hour training solution
- Four fully programmable CAN nodes
- Circuit boards which mimic the functions of indicator lamps, switches and sensors
- CAN bus analyser
- Message generator
- 80 page teacher’s manual containing a range of exercises for automotive technicians upwards, available to download from the website (see resources tab)
