Antenna Trainer GOTT-ATT-3300
Technical Specifications
| Parameter | Value |
|---|---|
| RF signal frequencies | 500MHz, 2GHz, 10GHz |
| Model Number | GOTT-ATT-3300 |
| Warranty | 2 Years |
Experiments Included
- Polar plot & polarization of various antennas
- Wave modulation and Demodulation
- Antenna Gain
- Antenna Beam Width
- Element Current Study
- Front back ratio
- Antenna matching
- SWR measurement
- Antenna radiation with Distance
Standard Accessories
- BNC to Tee
- BNC to BNC Cable
- 14 SWG Wire roll 20″
- USB Cable
- Main Chord

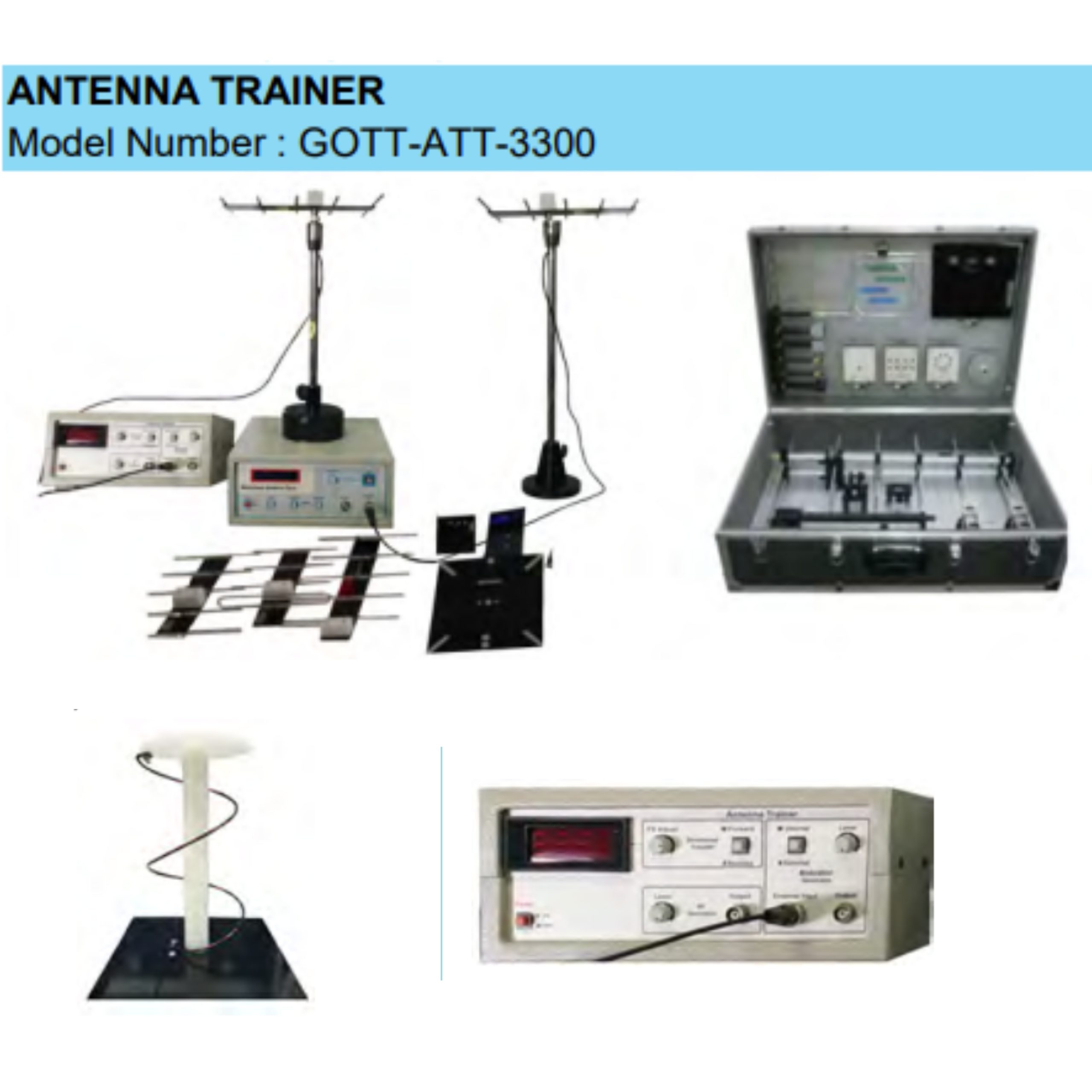

GOTT-ATT-3300 Antenna Trainer
Antenna Trainer (Model Number: GOTT-ATT-3300; Code 125-000)
The GOTT-ATT-3300 Antenna Trainer is a training system that includes the transmission mode and augmented antenna. Different types of operation use different antennas. The RF signal generator controls the direction of the antenna and provides 500MHz, 2GHz, and 10GHz RF signals. The system uses higher frequencies, which makes it possible to carry out experiments on propagation velocity in the narrow band, and it also makes relocation and safekeeping much easier. The antennas are used for satellite reception and are oriented more toward practical training. The quantity and distance of dipoles and anodes are adjustable, allowing users to gain antenna characteristics and the right direction for independent design.
Key Features
- Includes the transmission mode and augmented antenna
- Different antennas for different types of operation
- RF signal generator controls the direction of the antenna
- RF signals at 500MHz, 2GHz, and 10GHz
- Higher-frequency operation allows experiments on propagation velocity in the narrow band
- Easier relocation and safekeeping
- Quantity and distance of dipole and anode are under control
- Used for satellite reception and more practical training
- Allows users to gain characteristics and the right direction for independent design
Product Modules
Antenna Module Set (GOTT-ATT-3300)

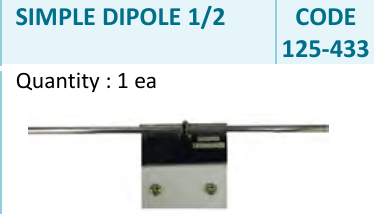

- Simple Dipole 1/2 (125-433)

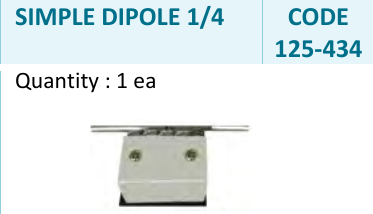

- Simple Dipole 1/4 (125-434)

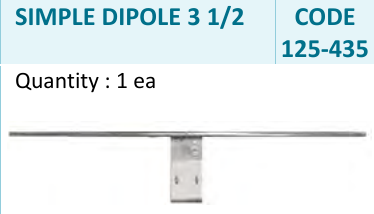

- Simple Dipole 3 1/2 (125-435)

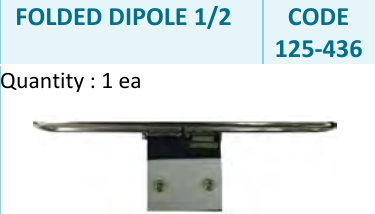

- Folded Dipole 1/2 (125-436)

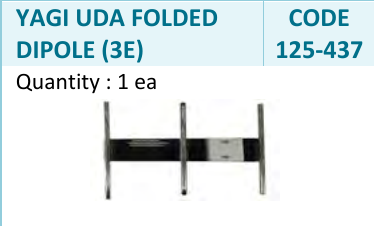

- Yagi UDA Folded Dipole (3E) (125-437)

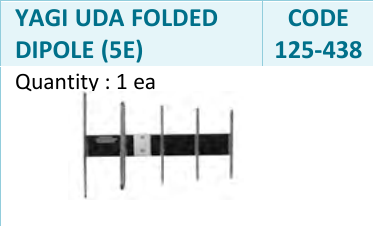

- Yagi UDA Folded Dipole (5E) (125-438)

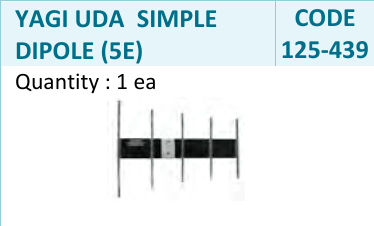

- Yagi UDA Simple Dipole (5E) (125-439)

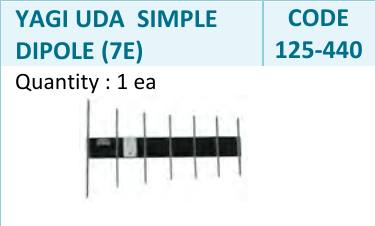

- Yagi UDA Simple Dipole (7E) (125-440)

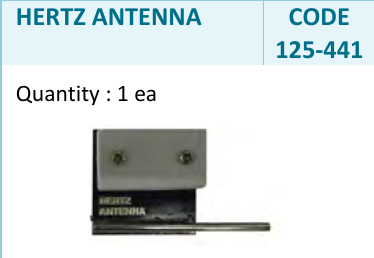

- Hertz Antenna (125-441)

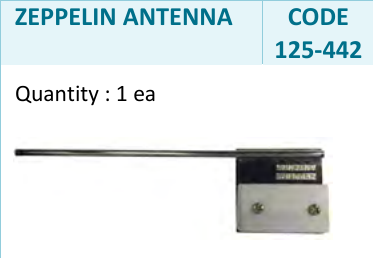

- Zeppelin Antenna (125-442)

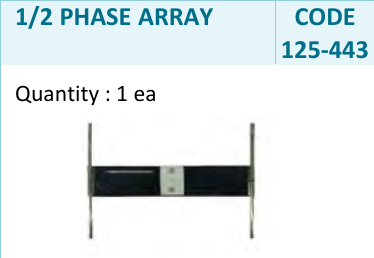

- 1/2 Phase Array (125-443)

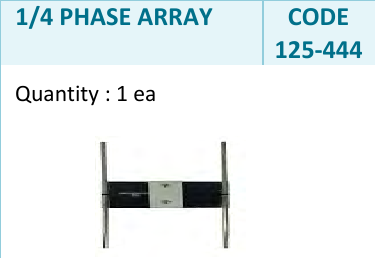

- 1/4 Phase Array (125-444)

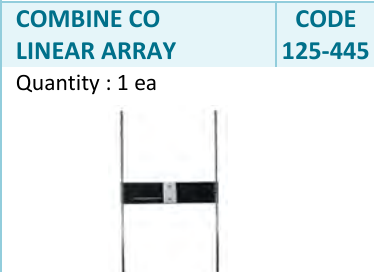

- Combine CO Linear Array (125-445)

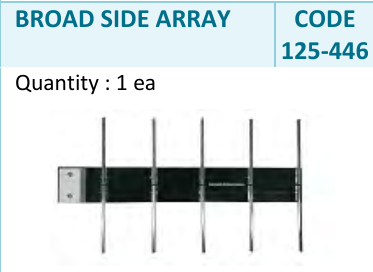

- Broad Side Array (125-446)

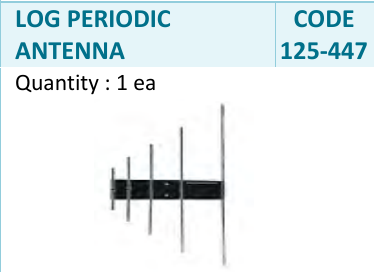

- Log Periodic Antenna (125-447)

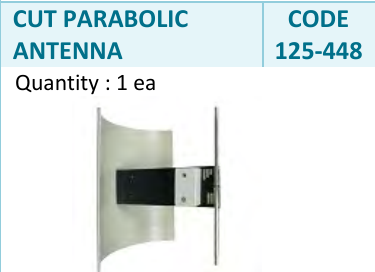

- Cut Parabolic Antenna (125-448)

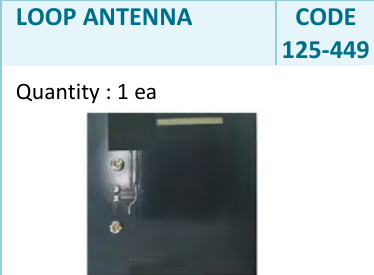

- Loop Antenna (125-449)

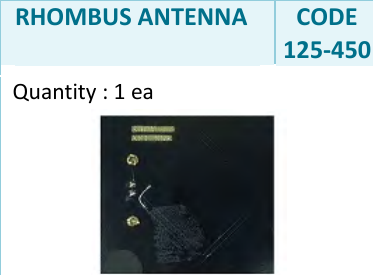

- Rhombus Antenna (125-450)

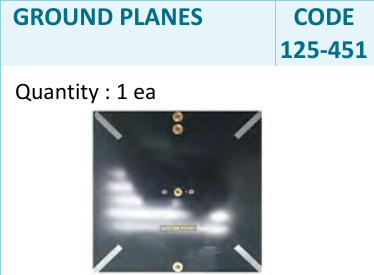

- Ground Planes (125-451)

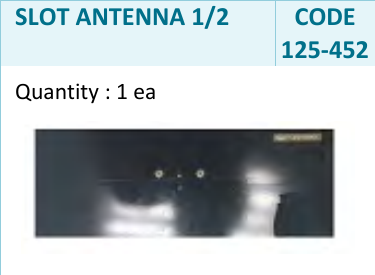

- Slot Antenna 1/2 (125-452)
Antenna Trainer System Set (GOTT-ATS-3300)

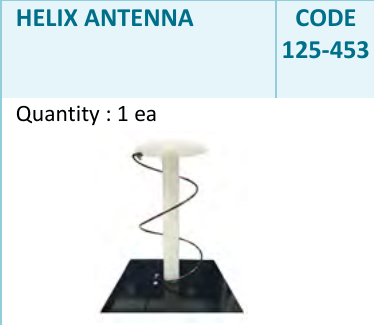

- Helix Antenna (125-453)

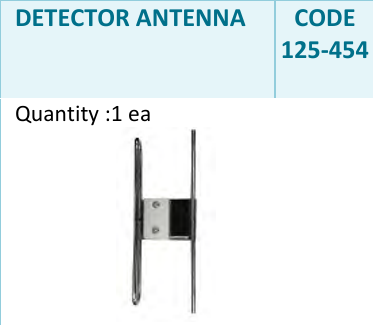

- Detector Antenna (125-454)

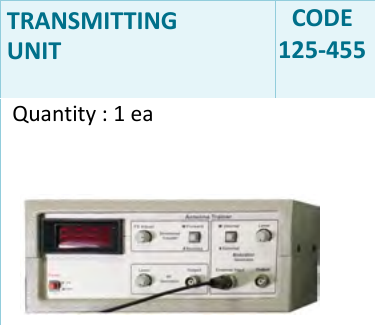

- Transmitting Unit (125-455)

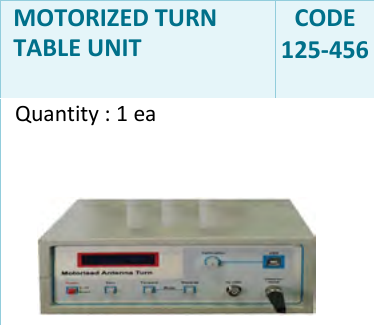

- Motorized Turn Table Unit (125-456)

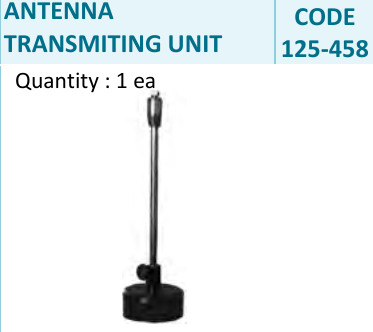

- Antenna Transmitting Unit (125-458)

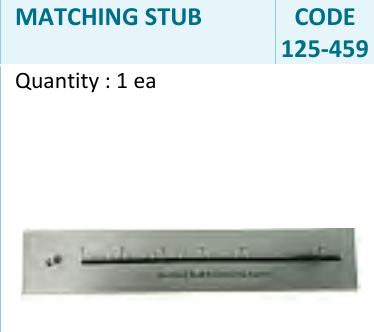

- Matching Stub (125-459)

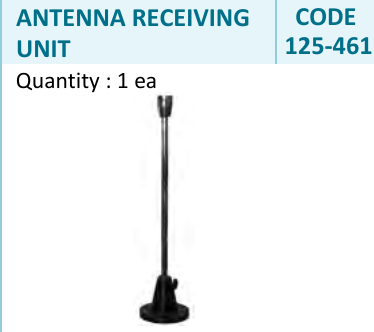

- Antenna Receiving Unit (125-461)
- Experiment Manual (125-463)
