Advanced Analog Communication Trainer DL 3155M60R
Key Features:
- Modular and flexible design for easy experimentation
- Real-time analog computation capabilities
- Comprehensive coverage of analog communication techniques
- PC interface compatibility for enhanced learning
- Optional Student Navigator software for guided experiments
Learning Outcomes:
With this trainer, users can study and implement:
- Analog computation techniques (multiplication, division, powers, roots)
- Logarithmic and antilogarithmic operations
- Signal attenuation and attenuator characteristics
- Amplitude Modulation (AM) and Demodulation
- Operational Amplifier (Op-Amp) configurations
- Signal processing blocks such as integrators, differentiators, and amplifiers
Theoretical Topics Covered:
- Fundamentals of analog computing
- Linear and non-linear operations
- Simultaneous multiplication and division
- Power and root computation
- Log and antilog functions
- Attenuator principles and specifications
- Audio attenuation techniques
- Types of amplitude modulation
- AM modulation and demodulation methods
- Operational amplifier characteristics and configurations
Circuit Blocks Included:
- Reference Power Supply Unit
- Real-Time Analog Computational Unit
- One-Quadrant Multiplier and Divider
- Root and Power Circuits
- Log/Antilog Units with Thermal Compensation
- Attenuator Module
- AM Modulation & Demodulation Block
- Non-Inverting Summing Amplifier
- Difference Amplifier
- Integrator
- Differentiator (Shunt)
System Modules:
The trainer consists of the following components:
- DL 3155E60R – Analogue Signal Processing Module
- DL 3155AL2 – Base Frame with Power Supply (Advanced Option)
- DL 2555ALG – DC Power Supply (Basic Option)
- TL 3155AL2 – Connecting Cables
Software Support:
An optional Student Navigator Software is available, allowing students to perform experiments and learning activities via PC without requiring additional documentation.
Power Supply Options
Advanced Configuration:
- DL 3155AL2 – Base frame with integrated power supply and PC interface
Basic Configuration:
- DL 2555ALG – DC power supply
- TL 3155AL2 – Connecting cables

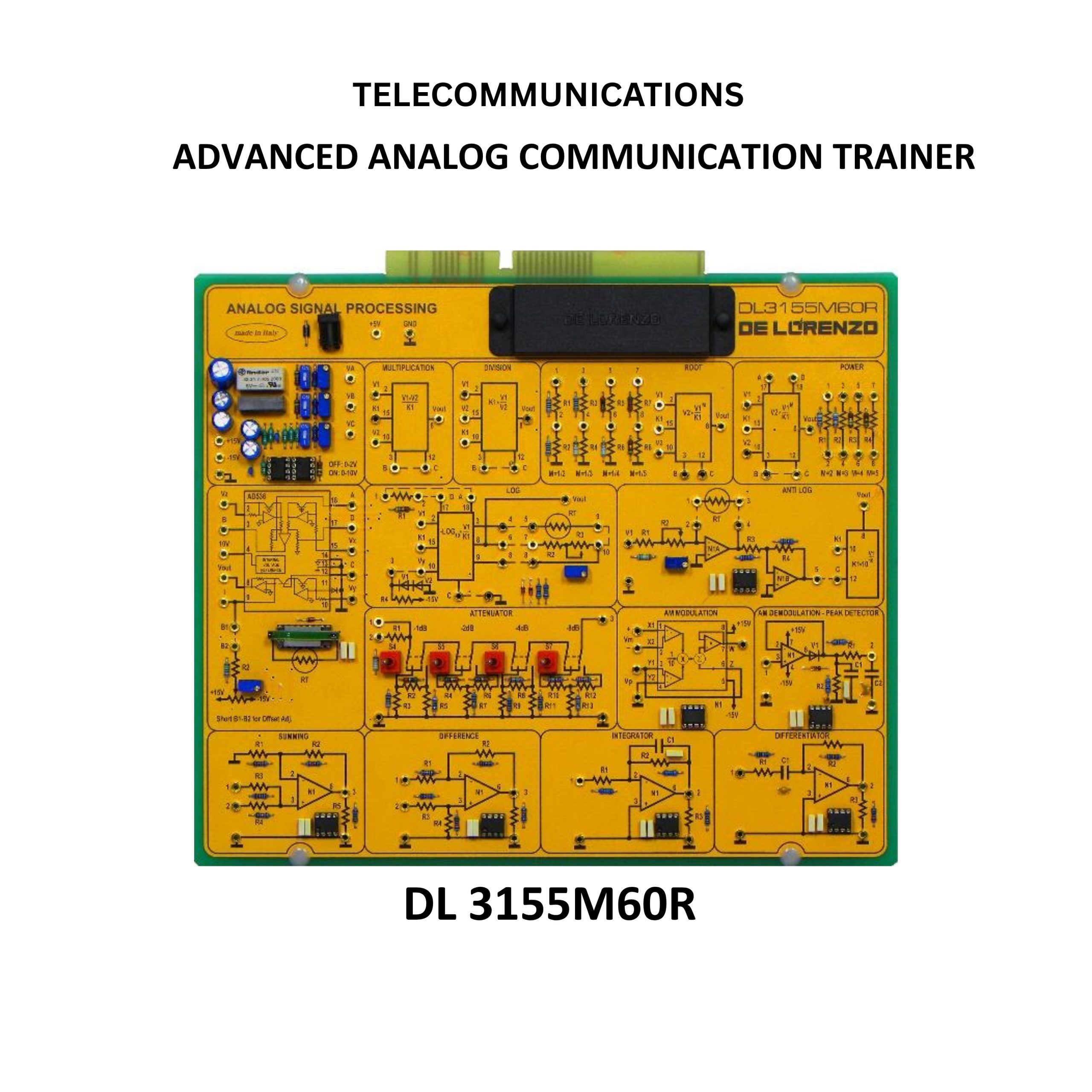

Telecommunications Advanced Analog Communication Trainer – DL 3155M60R
The DL 3155M60R Advanced Analog Communication Trainer is a comprehensive educational platform designed to provide hands-on experience in analog communication systems and analog signal processing techniques. It enables students and professionals to understand, design, and analyze real-world electronic circuits used in telecommunications and electronic engineering.
This trainer bridges theoretical knowledge with practical implementation, allowing learners to explore essential analog computation methods and communication principles through interactive experimentation.
