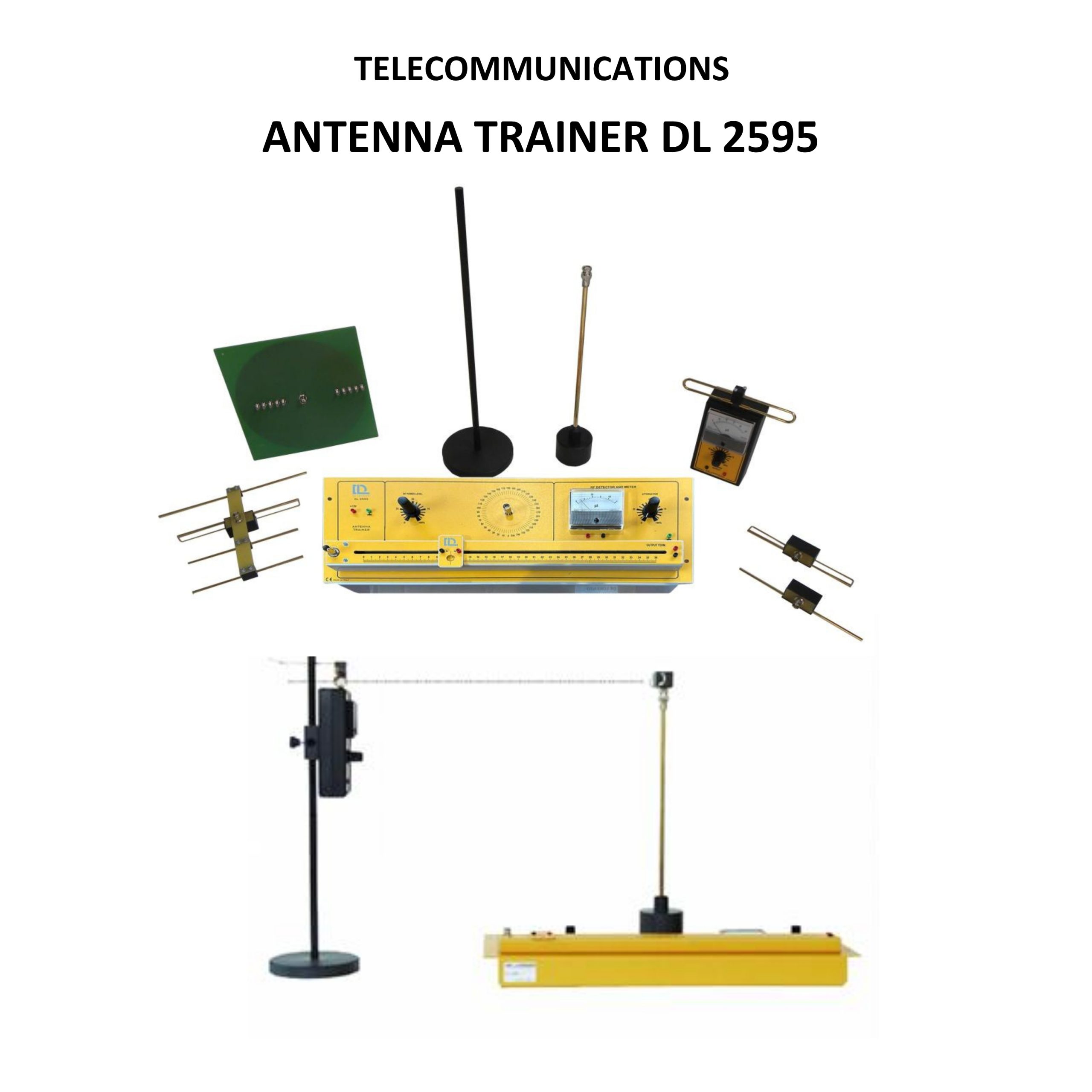

Telecommunications Antenna Trainer DL 2595
Technical Features:
The system includes a comprehensive set of components for experimentation and analysis:
- Base panel with built-in RF generator
- Lecher line for standing wave experiments
- RF detector and mobile receiver
- Adjustable mounting joint and supporting base
- Reflector and locking mechanism
- Shielded connecting cable (banana plugs, Ø 2 mm, 60 cm length)
- Set of connection and measurement cables
- Coaxial antenna support (mast) with rotating base
- ‘T’ BNC connector
- Set of 5 monopole antennas (various lengths with banana terminations)
- Ground plane antenna
- Yagi antenna
- Folded dipole antenna
- Simple dipole antenna
- RG59 coaxial cable (60 cm) with M/M and F/F adapters
Operating Specifications:
- Working Frequency: 860 – 950 MHz
- Input Power Supply: +15 V DC, 200 mA
Experiments Covered:
This trainer enables a wide range of practical experiments, including:
- Study of the Lecher line and standing waves
- Antenna polarization analysis
- Characteristics of the elementary dipole
- Folded dipole behavior and efficiency
- Yagi antenna performance and directivity
- Ground plane antenna operation
- Impedance matching using stub techniques
Included Module:
- DL 2555ALG – Power Supply Module
Provides stable DC power required for all trainer operations.
Telecommunications Antenna Trainer – DL 2595
The DL 2595 Telecommunications Antenna Trainer is an advanced educational system designed to help students understand the fundamental principles and operational behavior of various antenna types. It provides a practical, hands-on approach to studying RF transmission, antenna characteristics, and signal propagation.
This trainer is ideal for technical institutes, engineering universities, and vocational training centers focusing on telecommunications and electronics.
