Satellite Communication Trainer Model: IT-703
Experiments & Learning Outcomes
- Understanding basic concepts of satellite communication
- Establishing direct uplink and downlink communication
- Studying active satellite link operation
- Analysis of satellite transponder functionality
- Audio and video signal transmission via satellite link
- Voice communication over satellite systems
- Transmission of function generator signals
- Tone signal transmission through satellite link
- PC-to-PC data communication via satellite link
Key Features
- Complete satellite communication training solution
- Self-contained units with integrated modules
- Built-in audio generator, data generator, and tone generator
- Microphone interface for voice communication
- Built-in amplifier and speaker system
- USB-UART interface for PC connectivity
- Supports audio, video, and data transmission
- Clearly marked input/output sections for easy learning
- Built-in protection circuits for safe operation
- Includes power supply
Technical Specifications
Uplink Transmitter (IT-103A)
- Frequency Range: 2.42 – 2.48 GHz
- Channels: 4 selectable
- PLL: RISC processor-based
- Audio/Video Input: 1 Vp-p
- Output Power: ~25 mW
- Audio Generator: Adjustable amplitude and frequency
- Tone Generator: 1 kHz, 2 kHz, 4 kHz
- Data Generator: 8-bit DIP switch selectable
- Antenna: Detachable monopole with stand
- Low Pass Filter: 5th order Butterworth (3.4 kHz cutoff)
- PC Interface: USB-UART
Transponder (IT-703B)
- Uplink Frequency: 2.42 – 2.48 GHz
- Downlink Frequency: 2.42 – 2.48 GHz
- Sensitivity: -80 dBm
- Low Pass Filter: 5th order Butterworth (3.4 kHz cutoff)
- AC Amplifier: Variable gain
- Comparator: Data squaring
Downlink Receiver (IT-703C)
- Compatible with uplink transmission system
- Integrated audio output with amplifier
- Built-in speaker for real-time monitoring

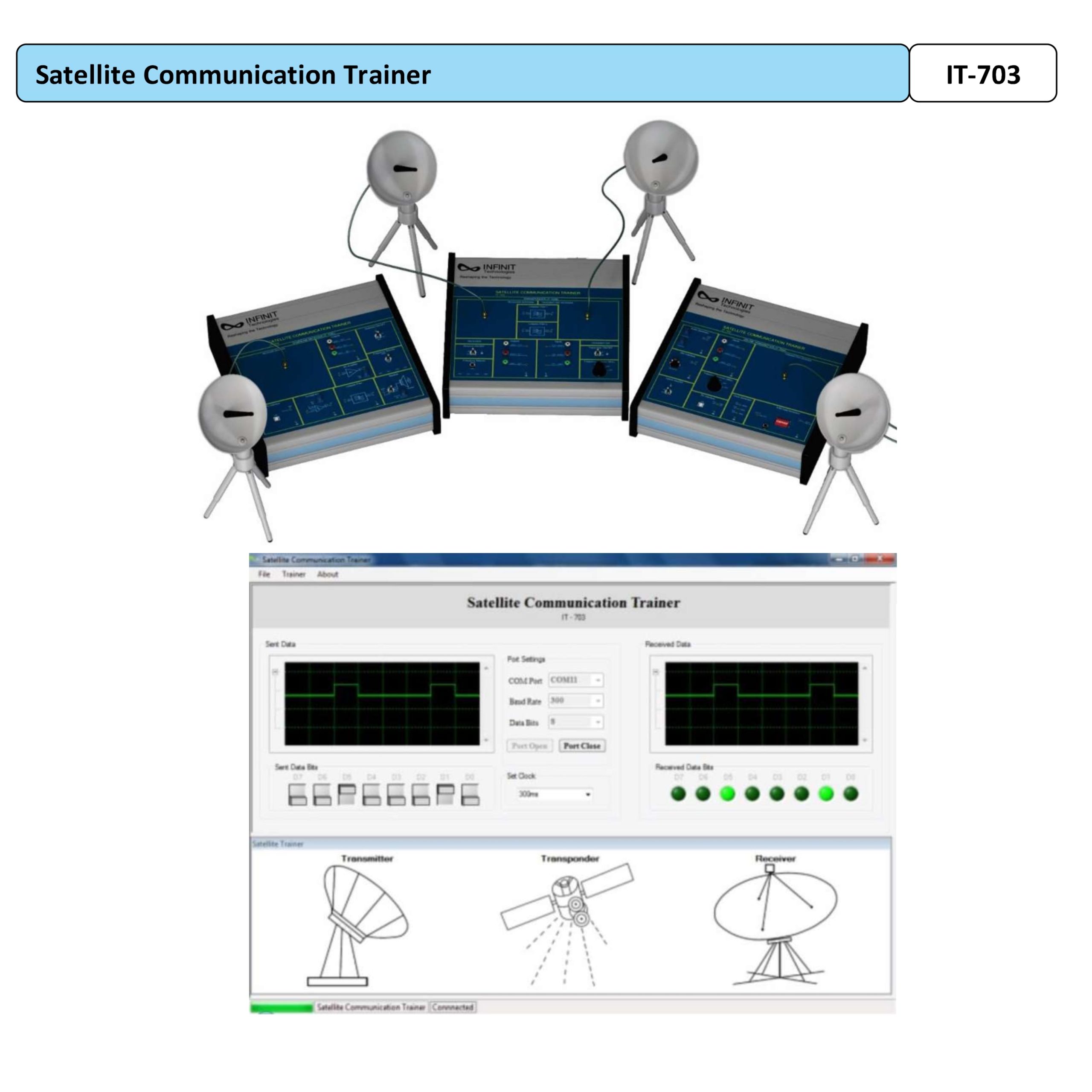

Satellite Communication Trainer (Model: IT-703)
The Satellite Communication Trainer IT-703 is a comprehensive educational system designed to demonstrate the fundamental principles and working concepts of satellite communication. It provides hands-on training by simulating real-world satellite communication links, making it ideal for engineering institutions, technical training centers, and research laboratories.
The trainer is structured into three fully integrated modules: Uplink Transmitter (IT-103A), Transponder (IT-703B), and Downlink Receiver (IT-703C). This modular design enables students to understand the complete communication process from signal transmission to reception through a satellite link.
The system supports simultaneous transmission of two audio channels and one video channel, allowing users to explore multi-channel communication. It is equipped with built-in generators, amplifier systems, and PC interfacing capabilities for advanced experimentation, including PC-to-PC data communication via satellite link.
