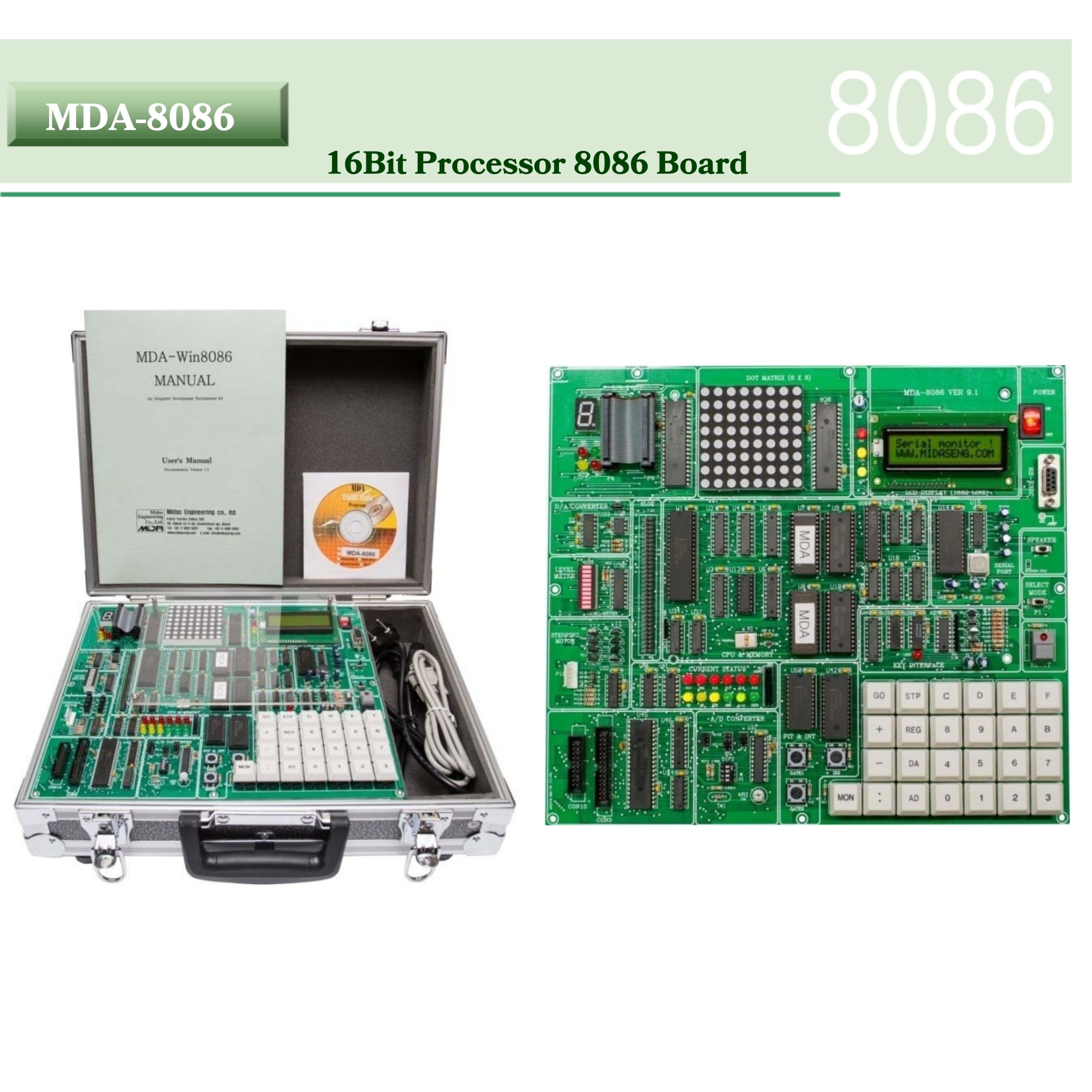

Features:

• PC-based program debugging function
• Program download and trace capability
• Register content display
• Memory modification and dump functions
• Various command support functions
• Supports TURBO-C 2.0 or later with startup code
• Included stepper motor interface circuit (Driver T.R x4)
• 8×8 dual-color DOT MATRIX LED unit
• 16×2 LCD display unit
• D/A and A/D converter experiment support
• Sound experiment with speaker
• Interrupt experiment support
• Thermistor sensor
• Bar LED unit
• Keyboard experiment support
• External interface connector
• System BUS status display via LED indicators
• Built-in S.M.P.S power supply (+5V, +12V, -12V, Free Voltage)
• Durable aluminum case

Technical Specifications

CPU: 8086
Main RAM: 64KB (62256 × 2)
Monitor ROM: 64KB (27256 × 2)
System Clock: 14.7456 MHz
Clock Generator: 8284

Display Unit: 16 × 2 LCD
Dot Matrix LED: 8 × 8 (2 Color)
Level Meter: HG101A

I/O Port: 8255A
Serial Port: RS-232C (8251A ×1)
Interrupt Controller: 8259
Timer Controller: 8253

A/D Converter: ADC0804
D/A Converter: DAC0800

Keyboard: 16 hexadecimal keys + 10 function keys
System BUS Indicator: LED (3Ø) × 12
Extended Connector:

• System BUS: 62 pins
• External Interface: 20 pins

Software Support

• 8086 Assembler
• C-language example programs
• MDA-WinIDE8086 Integrated Development Environment

Power Requirements

Input: AC 85–264V
Output:

• +5V (3A)
• +12V (1A)
• -12V (500mA)

Physical Specifications

Board Size: 310 × 265 mm
Case Size: 400(W) × 320(D) × 140(H) ±10 mm
Weight: 4 kg

Accessories

1. Example Software CD (1 Set)
2. RS-232C Cable (1 ea)
3. User’s Manual (1 Book)

Warranty: 1 year
