DSP Trainer (MDA-DSP)
Experiments Included
- LED Display Experiment
- Switch Input Experiment
- Text LCD Display Experiment
- ADC Experiment
- DAC Experiment
- Audio Experiment
- 8255 Interface Experiment
Technical Information
| Parameter | Description |
|---|---|
| DSP | TMS320C50 |
| Main Memory | 64KB (62256 x 2) |
| Monitor ROM | 128KB (27512 x 2) |
| Display Unit | LCD (16 x 4 LINE) With Back-Light |
| Serial Port | 1 RS-232C (8251A x 1, DB9핀 x 1) |
| System Clock | 40MHz |
| Software | DSPA Assembler, DSPAC C-Compiler |
| Emulator | MDA-WinIDE DSP Emulator |
| Integration Development Environment Program | Source code editing, assembling, compiling, and program writing; Code memory disassemble function; Display the TMS320C50 internal architecture; Pop-up Menu display; Program debugging through breakpoint, trace and instructions step facilities |
| Memory and I/O Decoder | PAL16L8 or GAL16V8 x 2개 |
| Key Board | 16 Keys for Data and 8 Keys for Function |
| Expansion Connector I | System 40 pins connector x 2 |
| External Interface | 20 pins x 1 |
| 8255A A, B, C Port | 30 pins x 1 |
| Expansion Connector II | 14 pins connector for Emulator x 1 |
| Audio Interface (AIC) | TLC32040 (Included 12 bits A/D and D/A) |
| Audio Jack | Input x 1, Output x 1, BNC Connector x 2 |
| A/D Converter | ADS7805P (16 bits, 4 channels) |
| D/A Converter | DAC712P (16 bits, 4 channels) |
| I/O Output | LED 10∮ x 8 |
| I/O Input and Interrupt Switch | 8-pin DIP S/W x 1, TACT S/W x 4 |
| External I/O Interface | 8255A x 1 |
| Step Motor Interface Driver | TR x 4 |
| System Bus Indicator | LED (5∮) x 12 |
| Power Input | A.C 85~264V |
| Power Output | D.C +5V (3A), +12V (1A), -12V (500mA) |
| Board Size | 310 x 265(mm) |
| Aluminum Case | 400 (W) x 320 (D) x 140 (H) ±10 (mm) |
| Weight | 4 Kg |
| Remark | 1 year warranty |

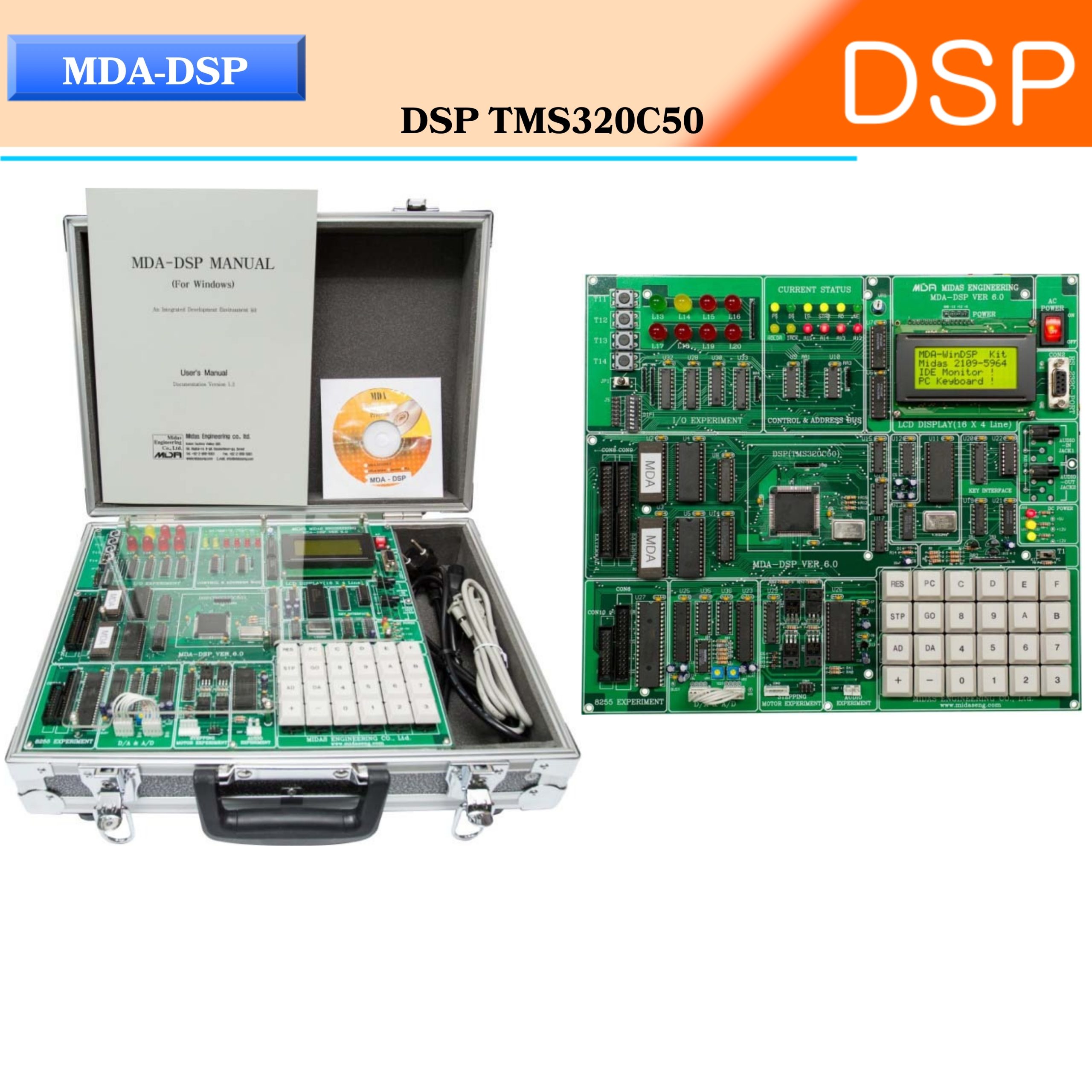

DSP Trainer (MDA-DSP)
The MDA-DSP is a DSP trainer based on the TMS320C50. It includes the MDA-DSP Integration Development Environment Program for source code editing, assembling, compiling, downloading, program execution, debugging, and code memory disassembly. The trainer supports stand-alone operation with a built-in keyboard and LCD and provides interfaces for analog, audio, memory, and I/O experiments.
Features
- MDA-DSP Integration Development Environment Program
- Display the TMS320C50 internal architecture
- Edit, Assemble, Compile, Download and program run the source file
- Debugging functions
- Code memory disassemble function
- TMS320C50 register Block & external Memory Dump and editing functions
- Program scroll display function
- Pop-Up menu display
- Can be use with stand alone mode with built-in keyboard and LCD
- Visual indication by LED’s for displaying data, status and control pins
- Various command function
- I/O port and interrupt experiment
- I/O output function use to audio or analog signal
- Analog signal input function use to 16-bit A/D converter
- Analog signal output function use to 16-bit D/A converter
- Extension memory and I/O port interface connector
- +5V, +12V, -12V SMPS (Free Voltage) Power
- Aluminum Case
Standard Accessories
- MDA-WinIDE DSP Program CD : 1 Set
- RS-232C Cable : 1 EA
- User’s Manual : 1 Book
Optional Accessories (If Available)
Not specified in the PDF.
Applications
The PDF states the trainer is intended for:
- I/O port and interrupt experiment
- Audio or analog signal output
- Analog signal input using a 16-bit A/D converter
- Analog signal output using a 16-bit D/A converter
- Extension memory and I/O port interface applications
Summary
The MDA-DSP DSP Trainer is a TMS320C50-based training platform that combines an integrated development environment with stand-alone operation. It provides facilities for program editing, compiling, debugging, memory management, analog and audio interfacing, and a range of practical experiments including LED, LCD, ADC, DAC, audio, and 8255 interface experiments. The trainer is supplied with the required software, communication cable, and user manual as listed in the PDF.
