Dissectible Machines Training System IT-19001
Educational Experiments
Students can perform practical experiments on:
- Magnetic field study
- Electromagnetic induction principles
- DC motors and generators (shunt, series, compound)
- Induction motors (slip ring, squirrel cage, capacitor type)
- Dahlander motor connections
- Synchronous motors
- Alternators
- Universal motors
- Phase shifters and induction regulators
Features
- Complete modular training system for DC and AC rotating machines
- Safe low-voltage industrial-standard operation
- Supports machine assembly, disassembly, and testing
- Industrial-grade components for practical skill development
- Integrated fault simulation for troubleshooting training
- Motor starting, synchronization, and speed control modules
- Expandable system with optional magnetic brake and DAQ software
Included Modules

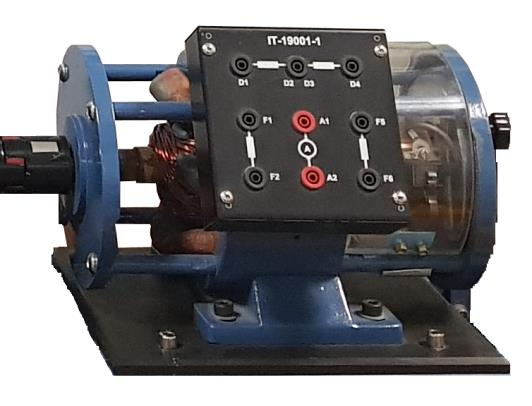

- DC Motor Assembly (IT-19001-1)
Configurable as:- DC Shunt Motor
- DC Series Motor
- DC Wound Rotor Motor

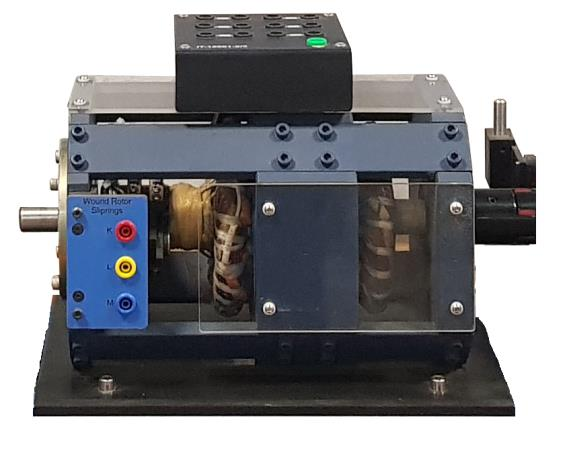

- Three Phase Squirrel Cage Motor Assembly (IT-19001-2)
Configurable as:- 2-Speed Dahlander Motor
- 1-Phase Capacitor Motor
- Wound Rotor Motor
Additional modules include:
- Power Supply Module
- Measurement Module

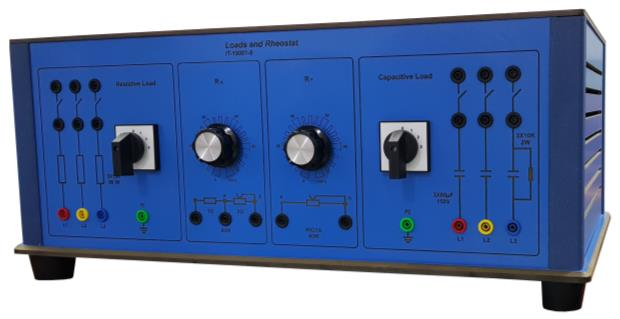

- Loads & Rheostat Module
- Adapter Bracket

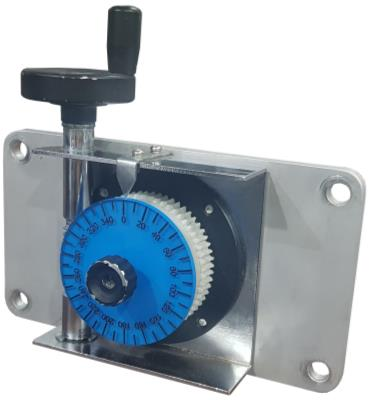

- Locking & Rotating Device

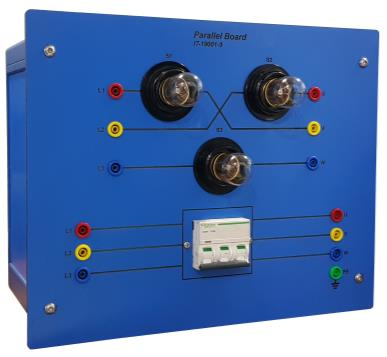

- Parallel Board

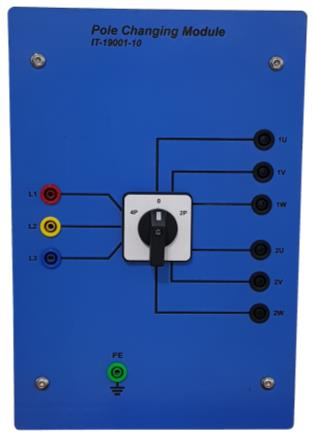

- Pole Changing Module

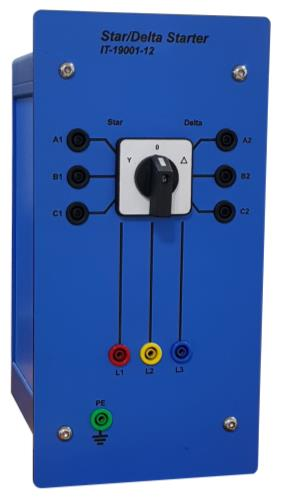

- Star/Delta Starter

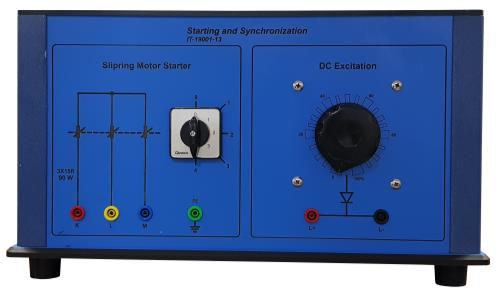

- Starting & Synchronization Module

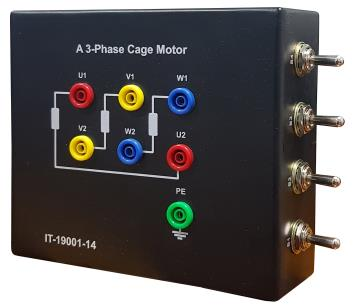

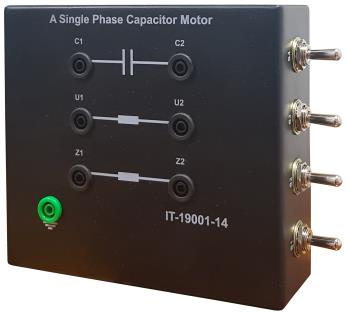

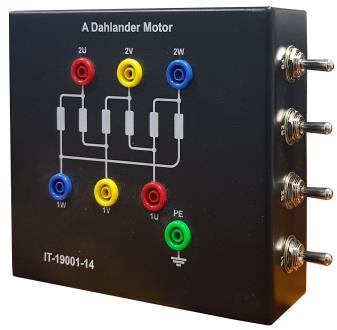

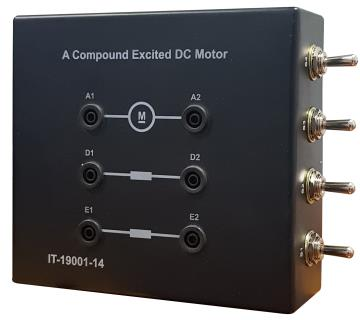

- Fault Simulators
Technical Specifications
DC Motor Assembly
- Operating Voltage: 42V DC
- Nominal Current: 9–9.5A DC
Three Phase Motor Assembly
- Operating Voltage: 42V AC
- Nominal Current: 9–9.5A AC

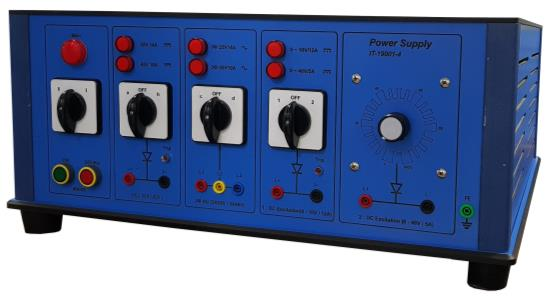

Power Supply Module
- Three-phase Output: 25V/14A, 40V/10A
- Single-phase Output: 0–48V/5A
- DC Outputs: 32V/14A, 42V/10A, 0–10V/12A
- Overload Protection Included

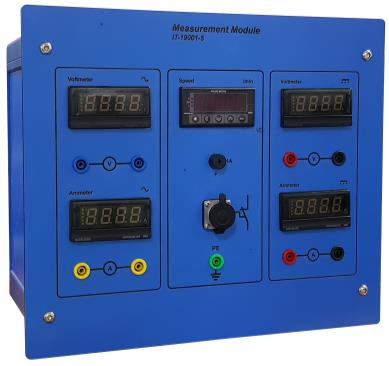

Measurement Module
- AC Voltage: 0–300V
- DC Voltage: 0–300V
- AC Current: 0–20A
- DC Current: 0–20A
- Speed Measurement: 0–4000 RPM

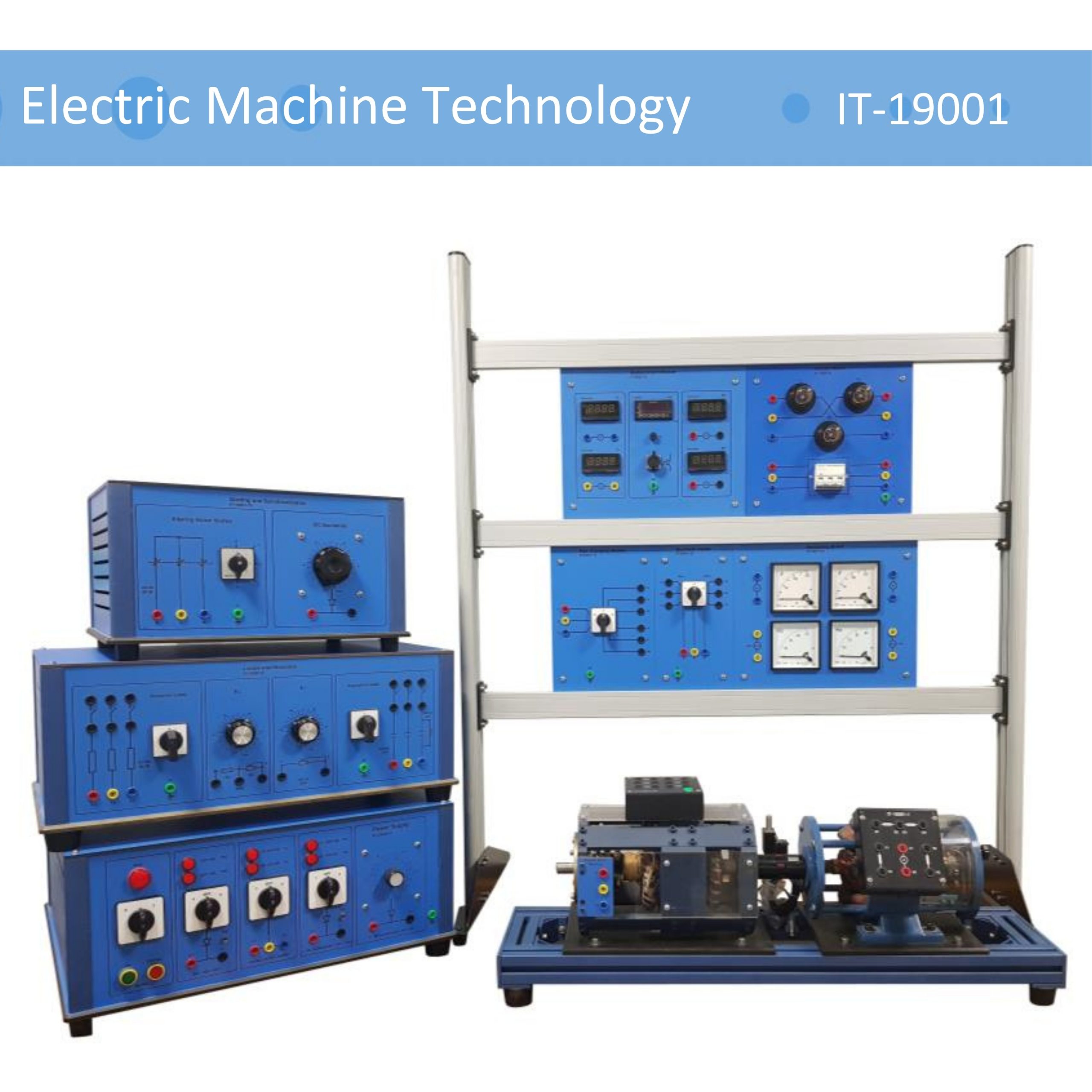

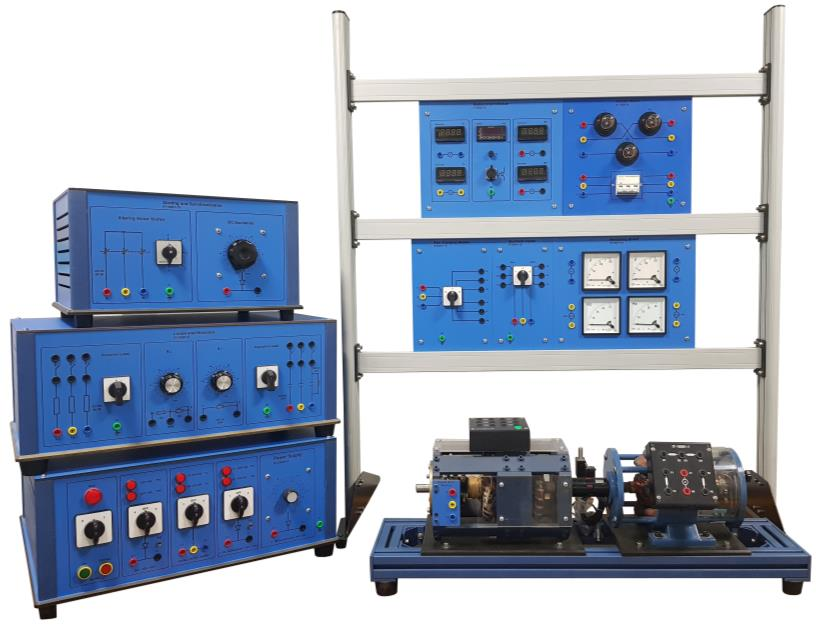

Electrical Machines Trainer – Dissectible Machines Training System (IT-19001)
The Electrical Machines Trainer (IT-19001) is a comprehensive modular training system designed for practical study, assembly, operation, and testing of rotating electric machines. This advanced educational platform supports both Direct Current (DC) and Alternating Current (AC) machines, making it ideal for technical institutes, engineering universities, vocational training centers, and industrial laboratories.
Built with low-voltage operation for maximum safety, the system eliminates accident risks while maintaining fully industrial-standard machine characteristics. Students gain real-world hands-on experience with machine construction, electrical measurements, fault simulation, synchronization, and motor control techniques.
Optional Accessories:
- Magnetic Brake (IT-19001-15) for output torque measurement
- Brake Control Unit (IT-19001-15A) with load cell, optical transducer, and digital display
- Software IT-19001SW
LABVIEW™-based DAQ software for measurement, calculation, and data acquisition under Windows environment.
