Cooling Tower TH-3119-03
Technical Information
| Parameter | Description |
|---|---|
| Cooling Capacity | approx. 110 kW |
| Water Flow Rate | 9 m³/h |
| Fan Max. | 3900 m³/h at 1450 min⁻¹ |
| Pump Max. | 19.2 m³/h |
| Temperature Measuring Range | 2 × -100~400°C |
| Temperature Measuring Range | 2 × 0~100°C |
| Relative Humidity Measuring Range | 2 × 0~100% |
| Pressure Measuring Range | 1 × 0~2.5 bar |
| Pressure Measuring Range | 1 × 0~6 bar |
| Flow Rate Measuring Range | 0~20 m³/h |
Experiments
- Energy balance
- Cooling efficiency
Cooling Tower

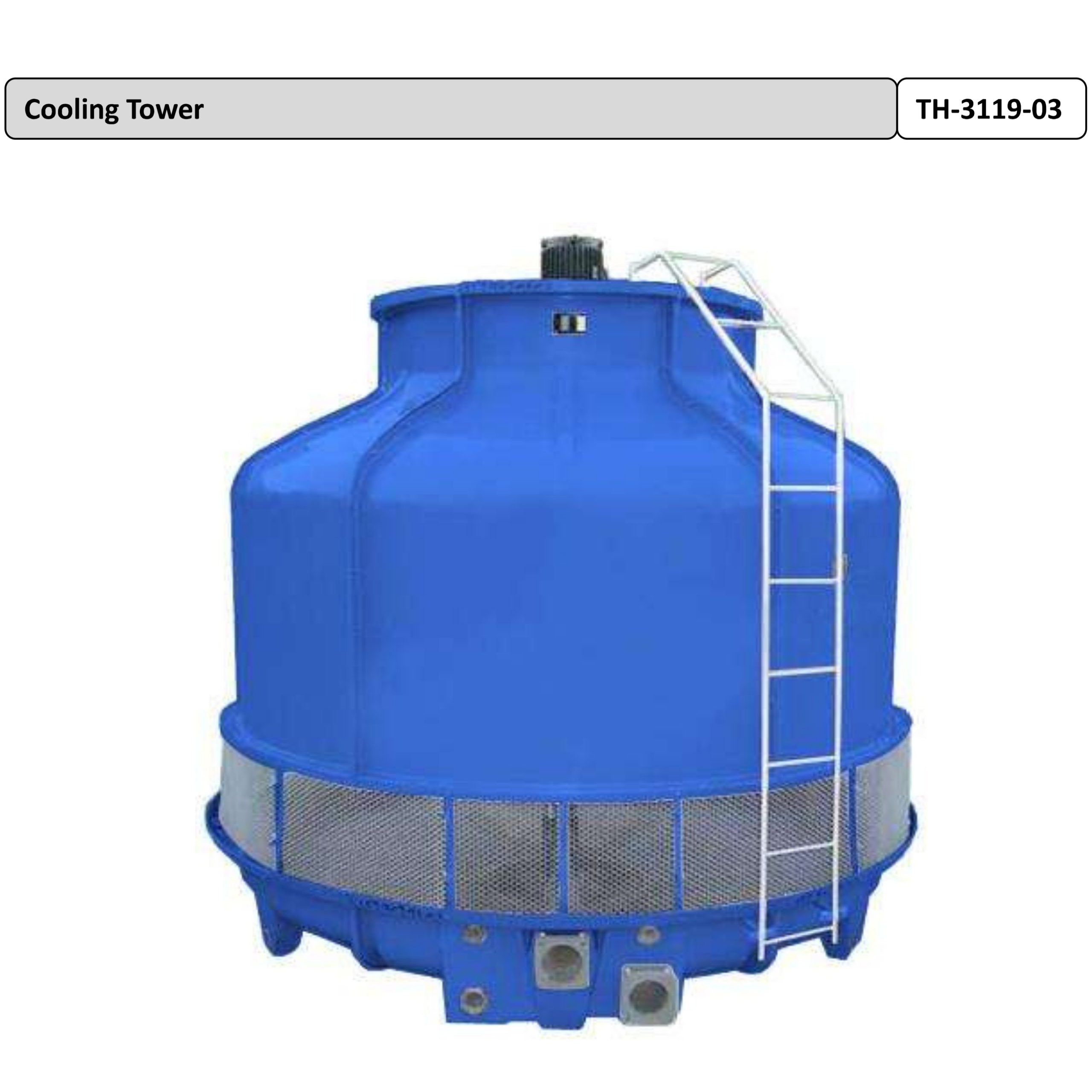

The Cooling Tower (TH-3119-03) is a forced draught wet cooling tower designed for operation with the TH-3119 steam power plant. It is a critical component of the cooling water circuit, used to recool condenser cooling water and maintain optimal operating conditions. The unit automatically compensates for evaporation losses and provides direct readouts for temperature, air humidity, and water flow rate at both inlet and outlet points. Designed for open-air operation, it integrates with the TH-3119 electrical system and water connections for straightforward installation and operation.
Features
- Forced draught wet cooling tower
- Designed for operation with TH-3119
- Automatic compensation for evaporation losses
- Direct readout of temperature at inlet and outlet
- Direct readout of air humidity
- Direct readout of water flow rate
- Open-air operation
- Integration with TH-3119 electrical system and water connections
Educational Objectives
- Temperature measurement at inlet and outlet
- Temperature and humidity measuring instruments for air
- Water flow measurement at the outlet
- Energy balance
- Cooling efficiency
Standard Accessories
- 1 experimental module
- 1 instruction manual
Optional Accessories (If Available)
- Educational Training Steam Boiler TH-3205
- Steam Power Plant TH-3119
Applications
- Recooling condenser cooling water within the TH-3119 steam power plant cooling water circuit.
- Operation with the TH-3119 steam power plant.
Summary
The Cooling Tower TH-3119-03 is a forced draught wet cooling tower designed for use with the TH-3119 Steam Power Plant. It provides cooling water recirculation, automatic compensation for evaporation losses, and measurement of temperature, humidity, pressure, and flow rate. Through experiments such as energy balance and cooling efficiency, the unit supports practical training and performance analysis in steam power plant systems.
