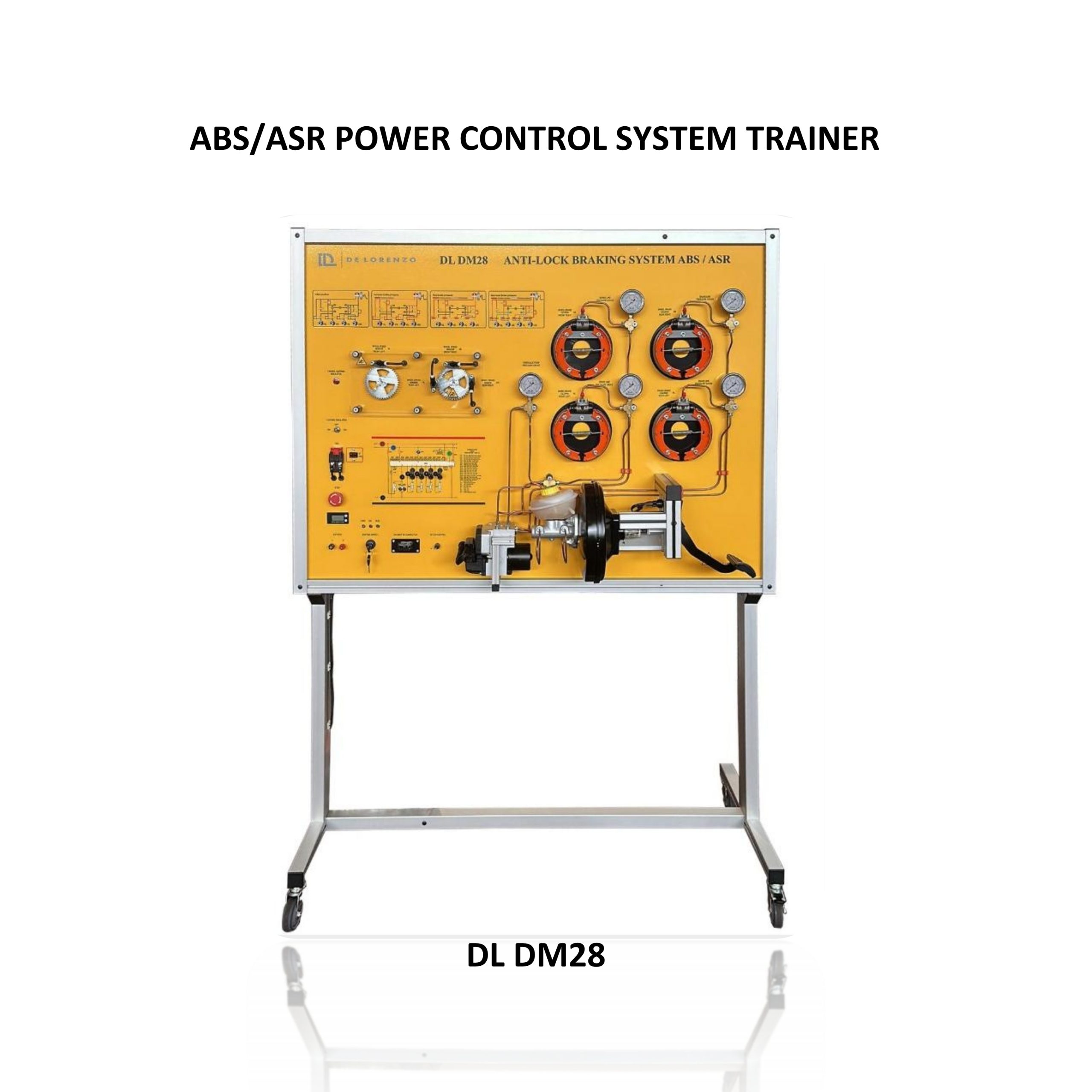

ABS/ASR Power Control System Trainer DL DM28
Experience:
This demonstration panel is specifically designed to provide practical learning experiences on:
- Working principles of the automatic brake power system ABS
- Operation of the ASR anti-slip regulation system
- Interaction between sensors, hydraulic circuits, and electronic controllers
- Measurement of voltage and sequence of input/output signals
- Analysis of programmer responses to dynamic signal changes
- Hydraulic pressure testing within braking circuits
Training Objectives
Using this trainer, students can perform the following experiments and practices:
- Understanding the complete functioning of the trainer
- Checking brake pedal operation at PWR position with engine off
- Checking brake pedal operation at RUN position
- Measuring voltage of wheel speed sensors
- Measuring signals from wheel speed sensors
- Performing ABS brake force regulation fault diagnosis (4 fault conditions)
- Using an OBD scanner for fault analysis
- Wheel locking simulation
- Wheel slipping simulation
Students can also monitor and measure several operational parameters including:
- Voltage from four rotational speed sensors
- Relationship between sensor voltage characteristics and toothed ring rotational speed
- Oscillation behavior of sensor signals caused by toothed ring rotation
- Brake mechanical system movement as a function of hydraulic pressure
- Hydraulic circuit pressure values in:
- Brake master cylinder
- Hydraulic circuit after ABS/ASR correction
Fault Simulation Capabilities
The trainer demonstrates the system reaction to common failures frequently observed in automotive ABS/ASR systems, including:
- Interruptions in wheel sensor circuits
- Interruptions in output circuits
- Low controlling signal values
- Reduced signal amplitudes for diagnostic analysis
Technical Specifications
- Model: DL DM28
- Dimensions (HxLxW): Approx. 1700 x 1200 x 500 mm
- Weight: Approx. 150 kg
- Power Supply: 12 Vdc / 60 Ah battery
- Working Temperature: -40°C to +50°C
Additional Features
- Complete with user manual
- Supports teachers in developing customized laboratory experiments
- Designed for automotive technology, vocational institutes, universities, and technical training centers
ABS/ASR Power Control System Trainer – DL DM28
The ABS/ASR Power Control System Trainer (DL DM28) by DE LORENZO is an advanced educational training system designed for the study and demonstration of automotive braking and traction control technologies. This trainer provides a realistic representation of the operating principles of the Automatic Braking System (ABS) and Anti-Slip Regulation (ASR) systems used in modern motor vehicles.
This training unit facilitates the simulation of normal vehicle operating conditions, including driving, braking, and braking scenarios where the ABS/ASR system is activated. It demonstrates system responses during extended braking delays, wheel locking conditions, and slipping situations. The trainer also represents the functioning of the anti-skidding ASR system, allowing learners to understand traction control behavior under different operating conditions.
The system is built with a microprocessor controller to simulate real vehicle electronic control functions. It enables laboratory experiments focused on measuring voltage levels, signal sequences, and system responses to dynamic input signal variations. Additionally, students can test hydraulic pressure changes in braking circuits and analyze how the ABS/ASR system regulates brake force under different conditions.
